| package; | |
| import flixel.system.FlxAssets.FlxShader; | |
| import openfl.display.BitmapData; | |
| /** | |
| * Implements the overlay blend mode as a Flixel shader. | |
| * | |
| * @see https://en.wikipedia.org/wiki/Blend_modes#Overlay | |
| * @author EliteMasterEric | |
| */ | |
| class OverlayShader extends FlxShader | |
| { | |
| @:glFragmentSource(' | |
| #pragma header | |
| // Takes an image as the input. | |
| uniform sampler2D bitmapOverlay; | |
| vec4 blendOverlay(vec4 base, vec4 blend) | |
| { | |
| // Depending on the base color, compute a linear interpolation | |
| // between black (base layer = 0), the top layer (base layer = 0.5), and white (base layer = 1.0) | |
| return mix(1.0 - 2.0 * (1.0 - base) * (1.0 - blend), 2.0 * base * blend, step(base, vec4(0.5))); | |
| } | |
| void main() | |
| { | |
| // Get the current pixel from the base layer. | |
| vec4 base = texture2D(bitmap, openfl_TextureCoordv); | |
| // Get the current pixel from the overlay layer. | |
| vec4 blend = texture2D(bitmapOverlay, openfl_TextureCoordv); | |
| // Compute the overlay blend mode. | |
| gl_FragColor = blendOverlay(base, blend); | |
| }') | |
| public function new() | |
| { | |
| super(); | |
| } | |
| /** | |
| * Assigns the bitmap to be used as the overlay. | |
| * @param bitmap A BitmapData object containing the image to use as the overlay. | |
| */ | |
| public function setBitmapOverlay(bitmap:BitmapData):Void | |
| { | |
| this.bitmapOverlay.input = bitmap; | |
| } | |
| } |
Author
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

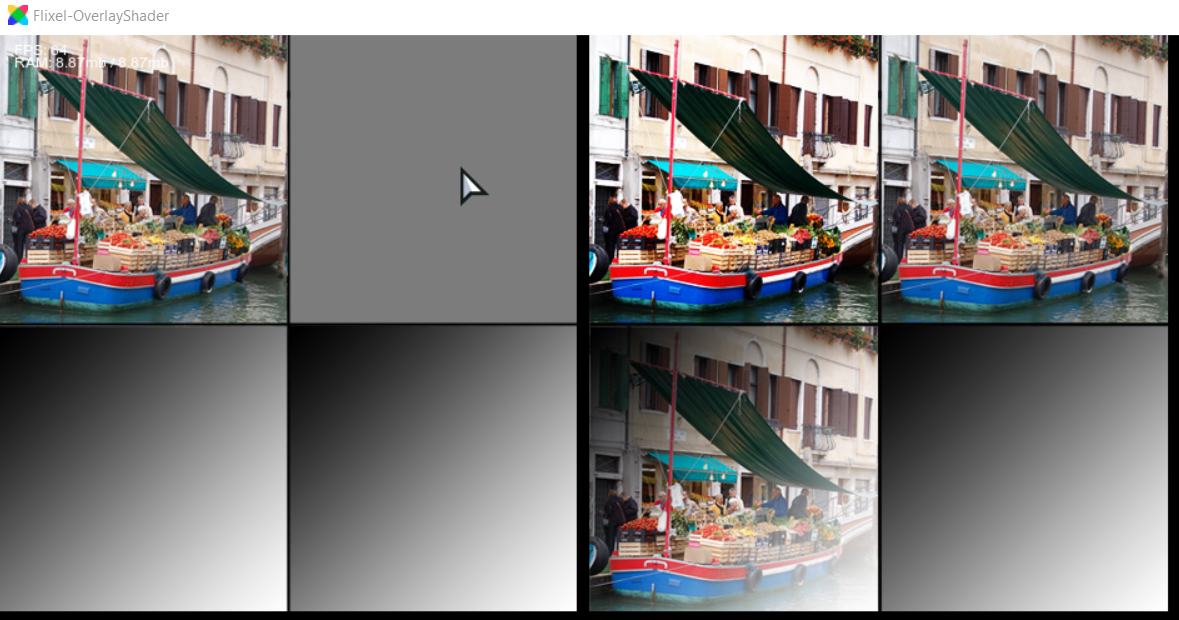

OpenFL provides the ability to call
sprite.blend = BlendMode.OVERLAY;, however this does not do anything on most platforms. This code implements the functionality as a shader. This means it is not as compatible with multiple layered sprites, or with animated sprites, but it's still useful if you want to apply a single texture as an overlay to another sprite.This shader also serves as a good example for those looking to use multiple textures as an input for a shader.
This code is made available under the MIT License. It is based on this code, which is also available under the MIT License.
