What is Jenkins X?

Not a simple answer to the question:

• a CLI
• a collection of community tools
• a way of working

Requirements for going through all these steps:

• A free GitHub organization with 2 free users (one will approve PRs and the other is a bot user used by the pipelines) OR just 2 free users (one will approve PRs and the other is a bot user used bythe pipelines)
  • I will use the first option as it is closer to what you would do in a real team, but it doesn't really matter
• An AWS account to run the EKS cluster in.
  • It is not that expensive to run the cluster just to give it a try (I estimated at around 0.18 USD per hour for 2 worker nodes) but it can become expensive to keep this cluster running all the time for personal use.

Create an EKS cluster with the jx CLI

• Jenkins X needs the Kubernetes clusters to be set up in a certain way
• Jenkins X uses eksctl (among other tools) to prepare the cluster this means that if you create the EKS cluster with some other tools, then you won't be able to deploy Jenkins X on that cluster (eksctl can only make changes on clusters it creates) unless you manage to create manually all the resources Jenkins X requires - I found very little information on this topic
• Therefore, the easiest way is to use the Jenkins X provided tools for creating the cluster
• How To
  • Make sure to run aws configure before creating the cluster and configure the authentication with your AWS account
  • To run all the CLIs, I am using an Ubuntu 18.04 VM running on Parallels
    • You can use this shell script to install all the dependencies you need to go through this: https://gist.github.com/alexchiri/67d3a267e8dc05cdfdb34ae1e926001c
    • New jx versions are released every week, so the version from the gist might become quickly outdated - make sure to check here and update as needed
  • I created an EKS cluster called jenkins-x-eks with 2 t3a.medium nodes (max 4) in us-east-1: jx create cluster eks --cluster-name='jenkins-x-eks' --skip-installation=true --node-type='t3a.medium' --nodes-min=2 --nodes-max=4 --region='us-east-1' --zones='us-east-1a,us-east-1b' - takes about 20 mins

Install Jenkins X on the newly created cluster

• Clone the jenkins-x-boot-config repo: git clone https://github.com/jenkins-x/jenkins-x-boot-config.git environment-jenkins-x-eks-dev
  • This repo contains all the needed configuration for Jenkins X for different cloud providers
  • During the Jenkins X installation, this local copy of the repo will be customised with your specific configuration details
  • Your local copy of this repo will also be used to create the dev environment of Jenkins X in your cluster - where all the pipelines, among other things, will run - more on this later
  • Do not clone this repo in the folder of another Git repo. In version 2.0.1275 of jx this will cause the installation of Jenkins X in the cluster to fail.
• Change directory into it: cd environment-jenkins-x-eks-dev
• Edit jx-requirements.yaml and change provider to eks, set versionStream.ref to v1.0.403 (there seems to be an issue with the latest version, looks like the secret for ECR is missing and it cannot push docker images to it) and if you want, set environmentGitPublic to true (the rest stays the same)
  • By setting environmentGitPublic to true you tell Jenkins X to create all repositories for the environments as public (required if you intend to create the environment repos in a free GitHub organization like I will do next)
• Run jx boot from the environment-jenkins-x-eks-dev folder and we'll go through the options together
  • Enter y when asked about Do you want to jx boot the jenkins-x-eks cluster?
  • Git Owner name for environment repositories - here jx is expecting a GitHub username or organization where all the environment repositories will be created - I created a free organization on GitHub called jenkinsx-play just for this purpose and I will use it here
  • Comma-separated git provider usernames of approvers for development environment repository - here you should also provide a list of GitHub usernames that will be able to make changes to the dev repo (the repo we use now to install Jenkins X). Whoever is in this list will be able to make changes to the Jenkins X cluster - I will provide my real GitHub username
  • Enter y for Do you wish to continue? related to TLS
  • Go with the default admin when it comes to the Jenkins X Admin Username
  • Provide a password for the admin for Jenkins X Admin Password - make sure you write it down somewhere, we will need it later
  • Pipeline bot Git username - provide the GitHub username that would be used to create resources in GitHub - it can be any GitHub user, I used the bot account I created in the free organization
  • Pipeline bot Git email address - this can be any email address, it will show up in the commits, but this doesn't have to be a real email
  • Pipeline bot Git token - here you should provide a token for the bot Git user. If you press ? and hit Enter, the CLI will give you more information, including a link that you can use to generate the token, while being logged in on GitHub: https://github.com/settings/tokens/new?scopes=repo,read:user,read:org,user:email,write:repo_hook,delete_repo
  • Go with the generated HMAC token at HMAC token, used to validate incoming webhooks. Press enter to use the generated token - this token is used for making sure that only the whoever knows this token can trigger the pipelines
  • Enter n when asked Do you want to configure an external Docker Registry?
  • Now jx will create the repositories for all the environments in the using the provided git credentials. By default, there will be dev, staging and production environments created
    • Go check out the new repositories created
    • Have a look at all the information jx has filled in in jx-requirements.yml in the dev environment
  • To wrap it up, jx will install all the tools it needs in the cluster and when it is done, the CLI will exit
  • Run kubectl get pods -A to see all the services Jenkins X has installed in the cluster, you will notice it is quite a long list
  • If you run kubectl get ingress you notice that Jenkins X is exposing some of these services outside the cluster, we will touch on that soon

Deploy a simple application on the cluster - 🎉LIVE DEMO🎉

Install app

• Change directory outside of the dev environment folder: cd ..
• jx create quickstart --git-public -f react-quickstart
• github.com username: - this user is going to be used to set up the repository of the new app - I entered here my real GitHub user
• API Token: - I created a new API token for using my real GitHub user by following the link https://github.com/settings/tokens/new?scopes=repo,read:user,read:org,user:email,write:repo_hook,delete_repo in a browser window where I am authenticated as that user
• Who should be the owner of the repository? - this can be a GitHub username or an organization - I will enter my free organization I created for this walkthrough - IMPORTANT: the user you entered previously should have access to do things in the context of the owner you enter here. So if the owner is an organization, then the user you entered previously should be a part of the organization and have the right permissions
• Enter the new repository name: - name of the repository for the new app, I will use cool-react
• Enter y for Would you like to initialise git now?
• Use the default Commit message: by hitting Enter.
• When the command finishes, the new application is created and several pipeline will start soon.

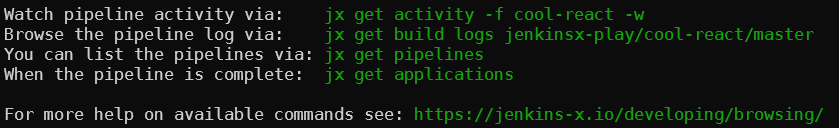

• Notice some useful commands listed in the output of the command:
  •

View pipelines

There are multiple ways to check what pipelines are running:

1. Using the jx get activity command - it will display the stages of all the pipelines that have run or are running. You can filter the output using the -f parameter and you can watch the output for changes using the -w flag
2. Using the deck GUI that comes with Jenkins X

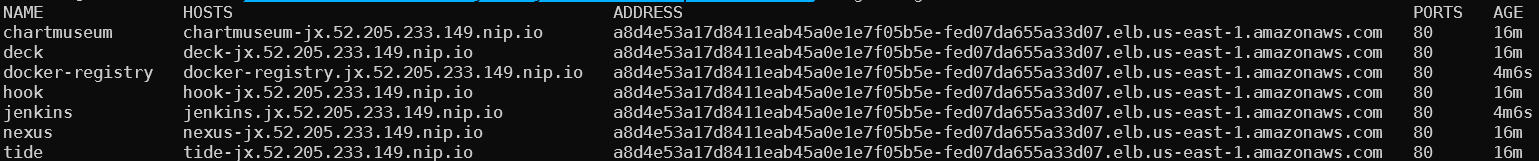

   1. You can find out its URL by looking at the ingress resources in the cluster with kubectl get ingress, this was the output for me:
      •
   2. You're interested in the deck HOSTS value. You take that and put it in your browser and a login dialog should pop-up. This is where you use the Jenkins X username and password we configured during setup.

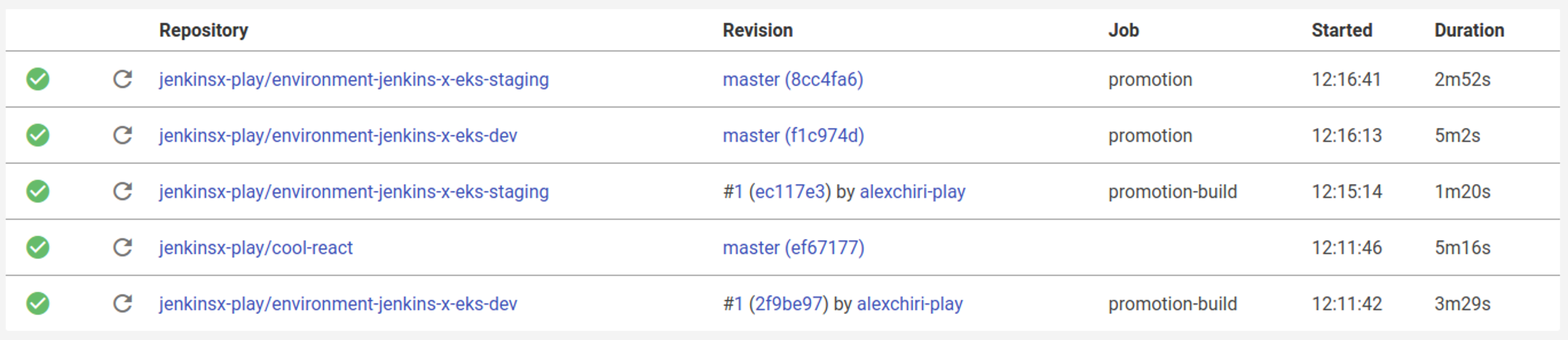

At this point, you should notice up to 5 jobs in the deck GUI, either finished or in progress:

If you're wondering where these pipelines are defined, have a look at the jenkins-x.yaml files in each repo.

❗️All jenkins-x.yaml files can have 2 pipelines implemented: one for pull-request that builds when a pull request is created and one for release when a new commit is pushed in master.

View running app in staging

• We'll talk more in the next section what each job did, but among other things, one of them deployed the app in staging
• You can see the URL using jx get applications. For me it displays something like this:
  •
• And if you follow the URL, sure thing, you will see your new application running!
• The application is running in a pod in the jx-staging namespace, you can check that by listing all the pods in that namespace using kubectl get pods -n jx-staging

Let's recap!

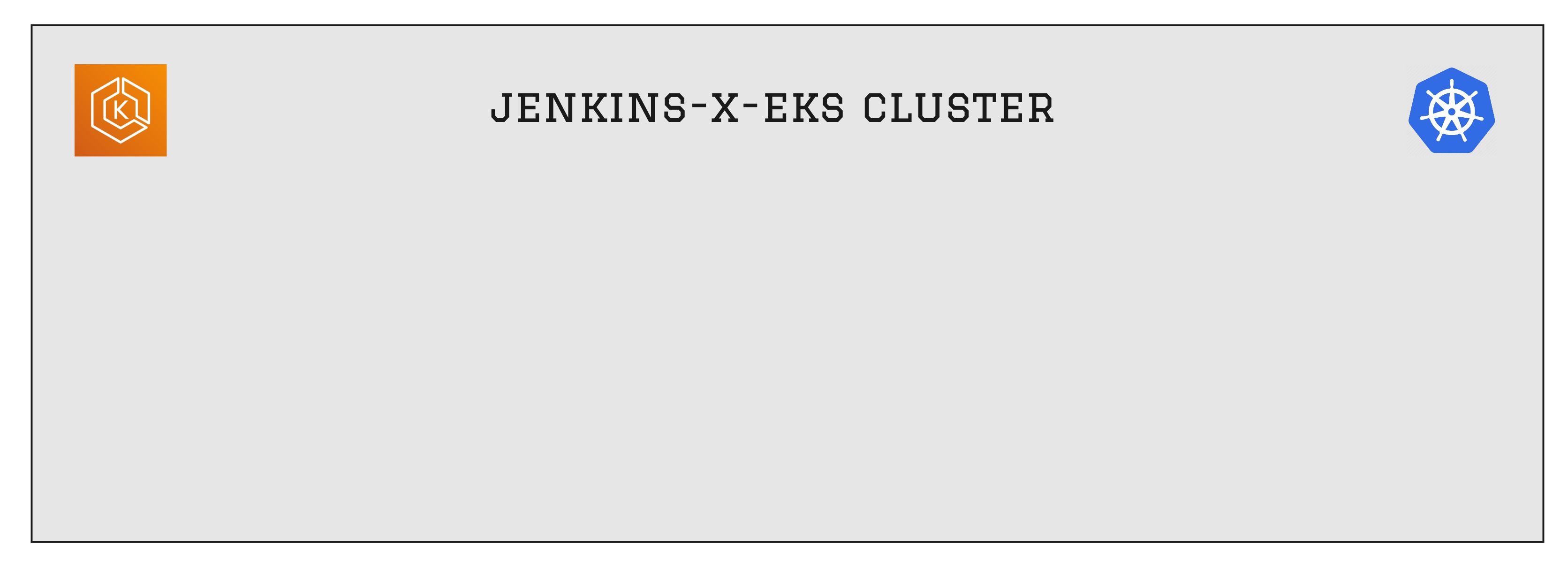

1. We have created a cluster in AWS EKS using the jx create cluster command

The cluster is not actually empty, there are some namespaces and pods for the core Kubernetes services, but since they are not relevant for this walkthrough, I decided to not represent them here

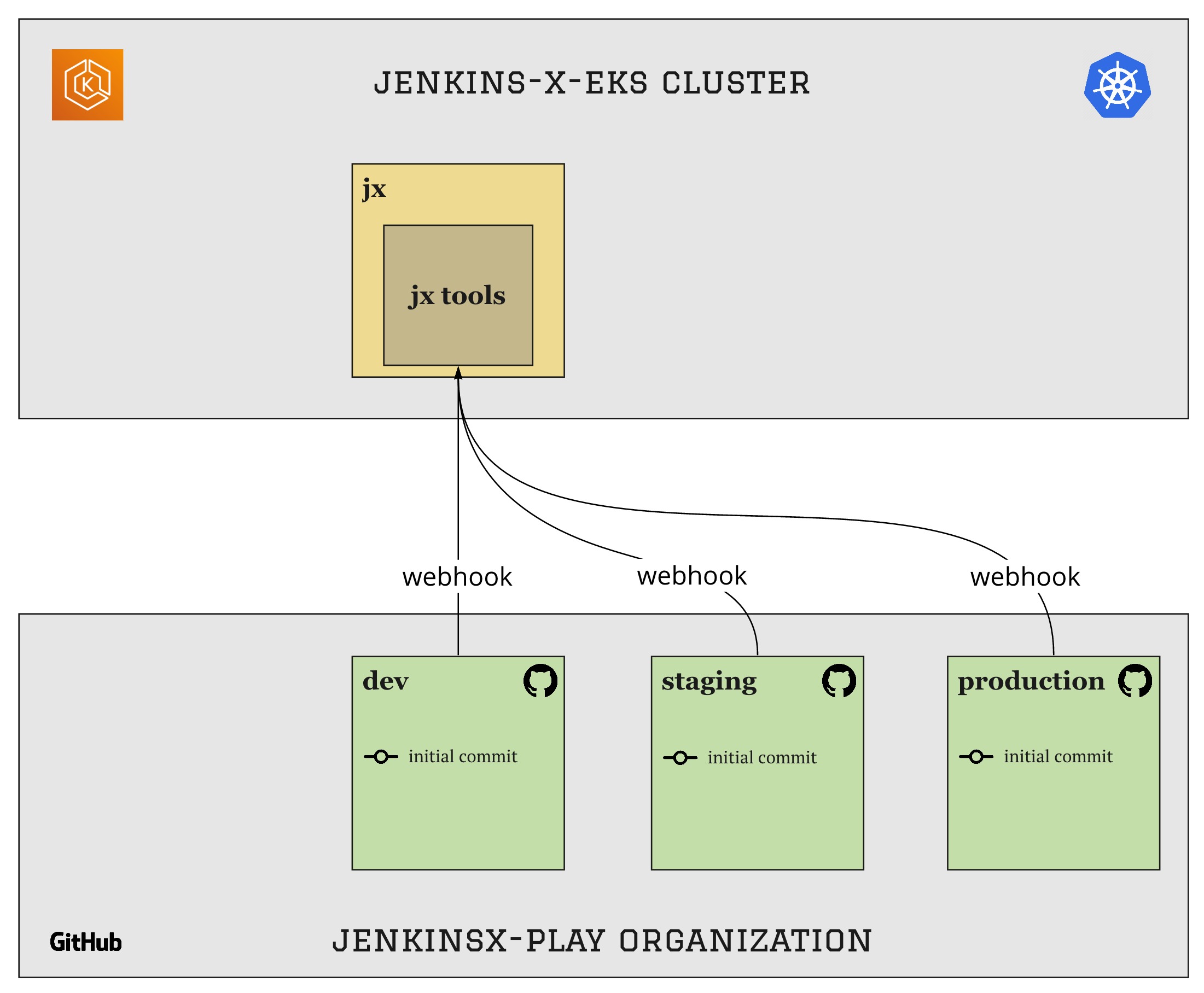

2. We have installed Jenkins X in this cluster using the jx boot command

jx boot creates the namespace jx (among others) when installed in the cluster. This is where all the pipelines will actually run. It also creates the repos for each environment in GitHub under the user or organization we have specified in the beginning. It installs webhooks from all the repos to the Jenkins X tools in the cluster so they get notified of all events (like commits, pull request created, comments etc)

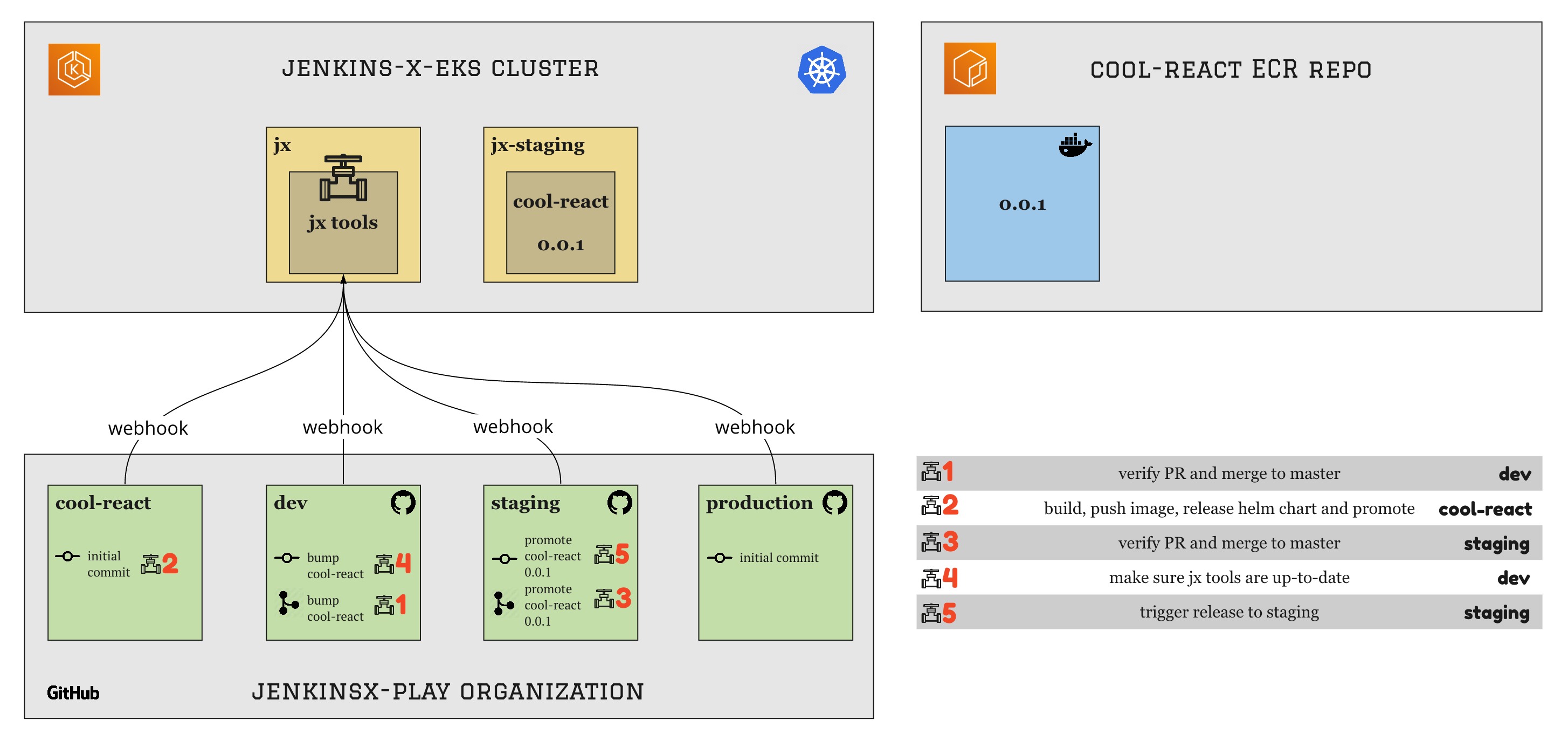

3. We created a new application using a template provided by jx and a first version of it was already deployed in the staging environment

The new repo for the cool-react app has been created, together with a webhook - triggered pipeline 2 cool-react has been registered to the dev environment in a branch (which triggered pipeline 1), which is later on merged to master and triggers pipeline 4 Automatic promotion on the staging environment is on, so cool-react 0.0.1 is promoted, first in a branch (which triggered pipeline 3) which is later on merge to master and triggers pipeline 5. Pipeline 5 triggers a release of cool-react 0.0.1 to staging.

Implement a small change in the application - 🎉LIVE DEMO🎉

Make a small change and preview it

• Clone the app repo using the non-bot user in GitHub.
• Let's make a small change in the react app by editing the file src > components > App.js and add an extra line of text.
• Commit and push to a separate branch, let's call it small-change
• Using the non-bot GitHub user, make a PR towards master from this new branch

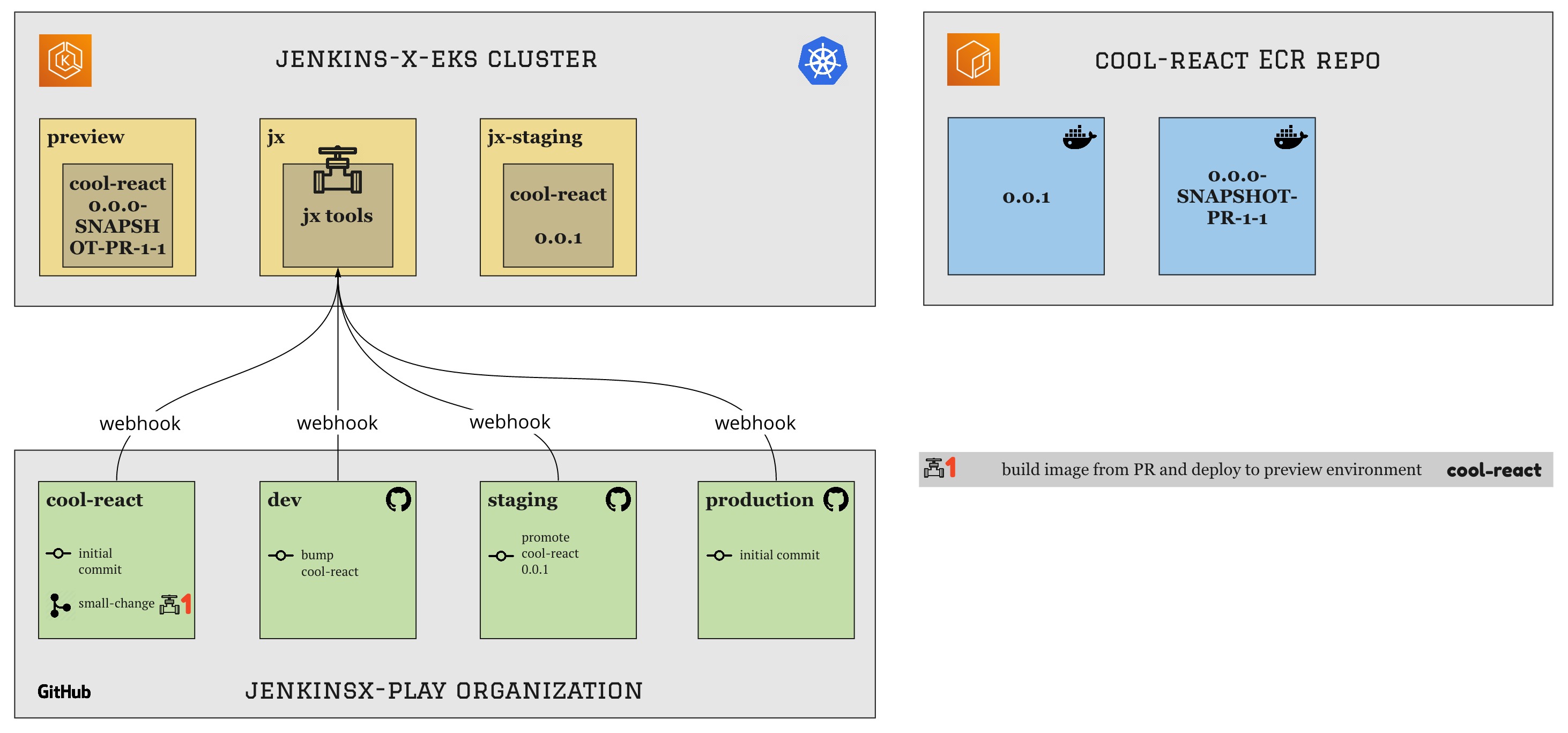

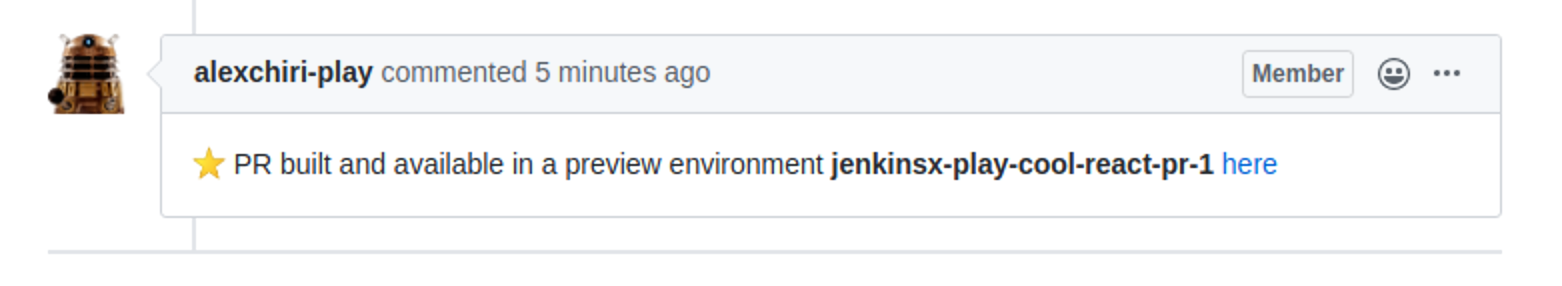

• In a few moments, a new pipeline will start and soon enough a new comment will be added to the PR linking to a preview of the changes you made: The moment we create the PR in the cool-react repo, it triggers the pull-request pipeline of the repo This pipeline creates a new Docker image and pushes it to the ECR repo and finally deploys it into the temporary preview environment

Approve the change

• If we are satisfied with the change, we can approve it and it will then be automatically merged and released to staging
• Only the GitHub users that are present in the OWNERS file of the app repo can approve changes.

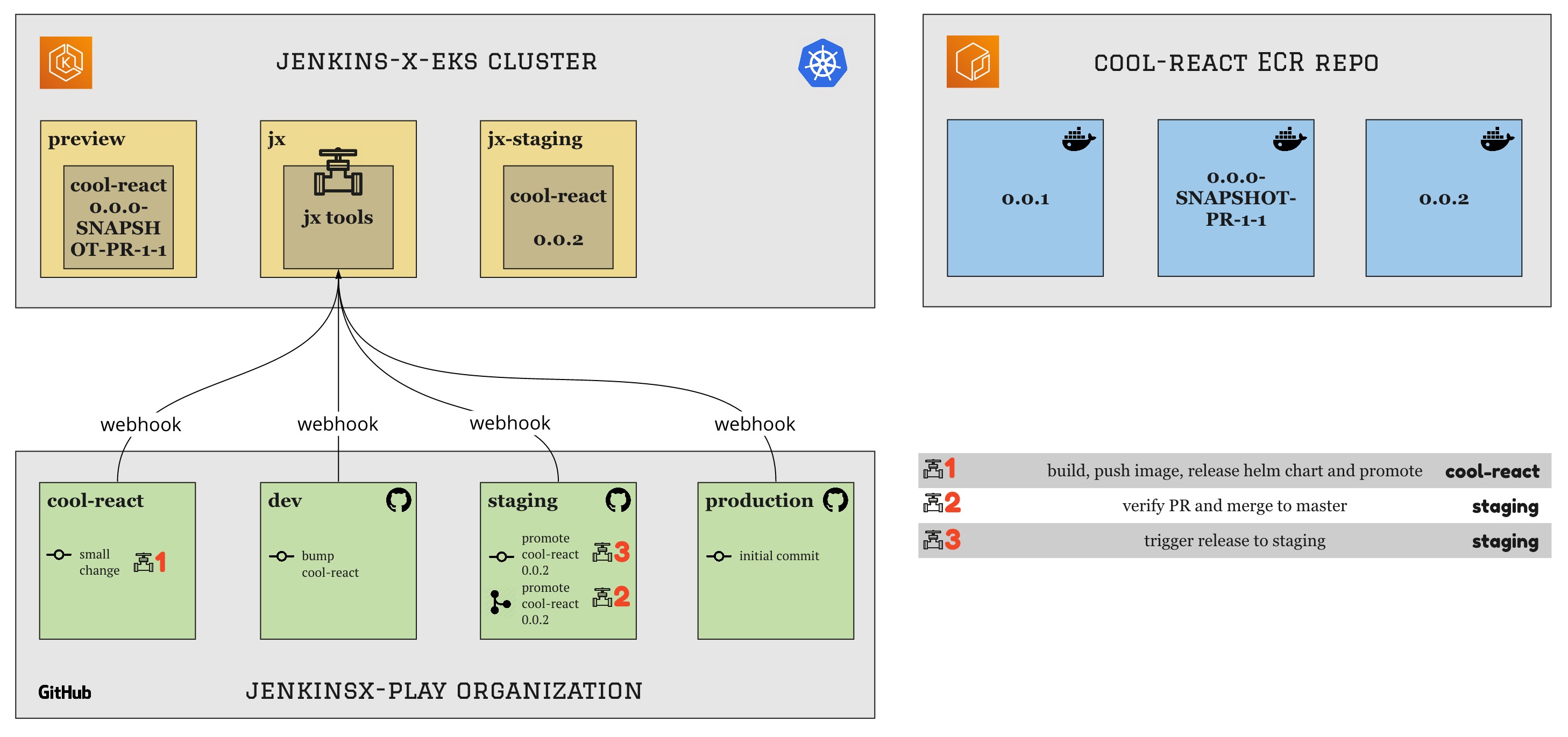

• In order to approve a PR, then we need to login as one of the users, go to the PR and simply add a comment with the text /approve. This will trigger one of the Jenkins X tools running in our cluster to merge the PR to master, which will trigger the normal automatic promote to staging.

Promote it to production

• Once we have done our integration tests or whatever we do in staging, we need to release the new feature to production.
• While releasing to staging is automatic by default in Jenkins X, the release to production is manual and requires us to run a command to do so.

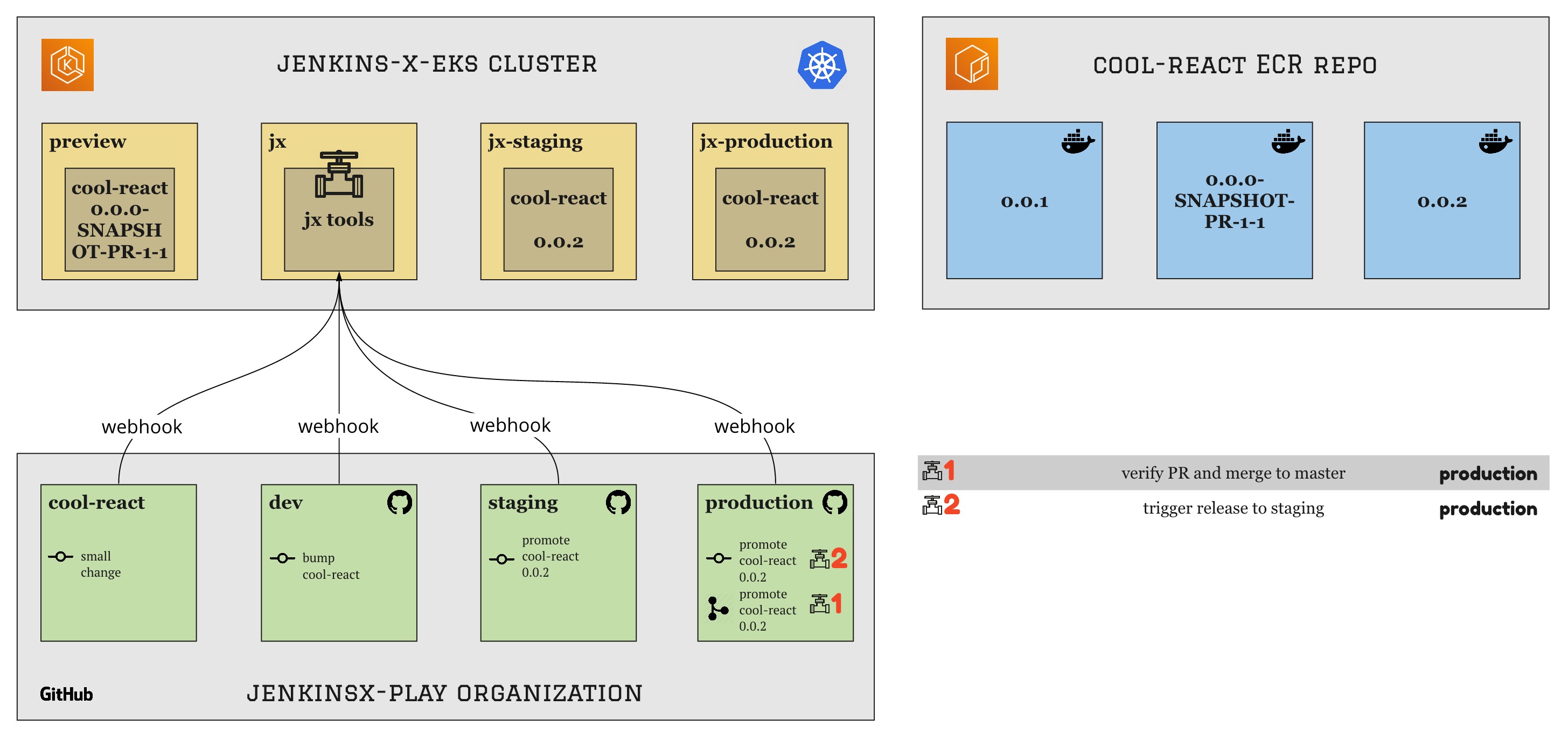

• To promote version 0.0.2 of cool-react to production we simply need to run the following command from inside the cool-react repo: jx promote --version 0.0.2 --env production

Clean-up

• eksctl delete cluster -n jenkins-x-eks -r us-east-1 -w
• delete repository and images from ECR
• delete any remaining EBS volumes
• delete repos (from organization and from bot user)
• delete personal access tokens
• delete .jx folder and local copies of the environments
• delete Cloudformation stacks
