Surprisingly on Apple M2 (ARM) atomic is inferior to mutex.
g++ -std=c++20 -O3 atomic_vs_mutex_cnt.cpp -pthread
python3 run_counter.py > counter_perf.csv
pip3 install pandas seaborn

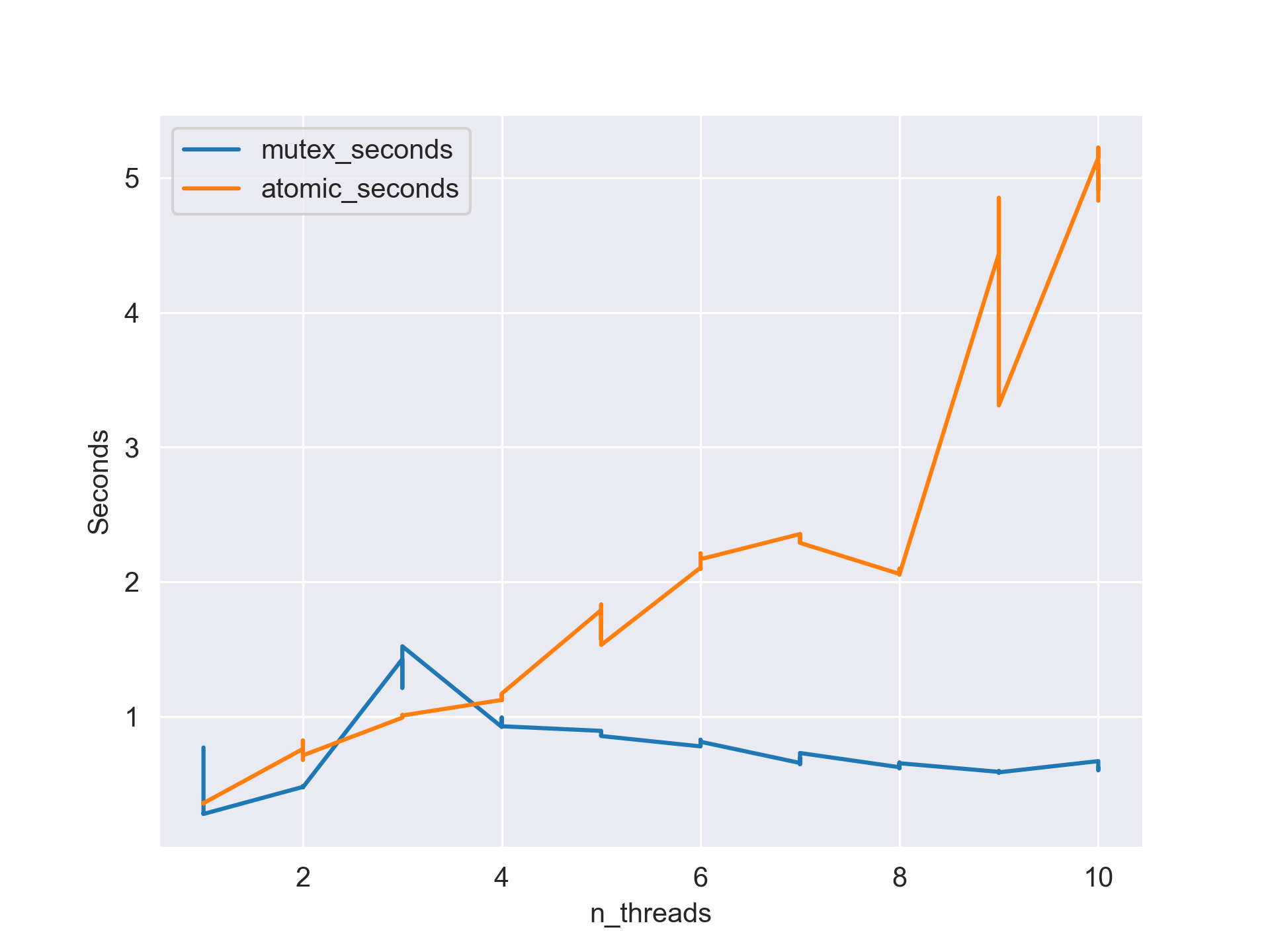

python3 plot.pysee result in mutex_vs_atomic_m2_chart.png
Last active
April 11, 2023 14:35
-
-
Save dmitryhd/d0f09903f878570fd3dc70f564c8f726 to your computer and use it in GitHub Desktop.
atomic vs mutex M2 benchmark
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| #include <atomic> | |
| #include <cassert> | |
| #include <chrono> | |
| #include <iostream> | |
| #include <mutex> | |
| #include <thread> | |
| #include <vector> | |
| #include <thread> | |
| namespace { | |
| constexpr int DEF_WORKLOAD = 50000000; | |
| } // namespace | |
| namespace { | |
| std::atomic<int> ACnt{0}; | |
| __attribute__((noinline)) void threadfunc_atomic(int Wload) { | |
| ACnt = 0; | |
| for (;;) { | |
| ACnt += 1; | |
| if (ACnt >= Wload) | |
| break; | |
| } | |
| } | |
| int MCnt = 0; | |
| std::mutex M; | |
| __attribute__((noinline)) void threadfunc(int Wload) { | |
| MCnt = 0; | |
| for (;;) { | |
| std::lock_guard<std::mutex> L{M}; | |
| MCnt += 1; | |
| if (MCnt >= Wload) | |
| break; | |
| } | |
| } | |
| } // namespace | |
| long int parse_arg(char **argv, int n) { | |
| errno = 0; | |
| char *endptr; | |
| long int x = strtol(argv[n], &endptr, 10); | |
| if (endptr == argv[n]) { | |
| std::cerr << "Invalid number: " << argv[n] << '\n'; | |
| } else if (*endptr) { | |
| std::cerr << "Trailing characters after number: " << argv[n] << '\n'; | |
| } else if (errno == ERANGE) { | |
| std::cerr << "Number out of range: " << argv[n] << '\n'; | |
| } | |
| return x; | |
| } | |
| int main(int argc, char **argv) { | |
| if (argc != 3) { | |
| std::cerr << "usage: prog [n_threads] [is_atomic '0' - mutex, any number - atomic ]\n"; | |
| return -1; | |
| } | |
| long int n_threads = parse_arg(argv, 1); | |
| long int is_atomic = parse_arg(argv, 2); | |
| std::vector<std::thread> threads(n_threads); | |
| auto func = threadfunc; | |
| if (is_atomic) { | |
| func = threadfunc_atomic; | |
| } | |
| for (int i = 0; i < n_threads; i++) { | |
| threads[i] = std::thread(func, DEF_WORKLOAD); | |
| } | |
| for (auto& th : threads) { | |
| th.join(); | |
| } | |
| } | |
| // g++ -std=c++20 -O3 x.cpp -pthread; hyperfine './a.out 2 1' --warmup 2 # Atomic 2threads | |
| // g++ -std=c++20 -O3 x.cpp -pthread; hyperfine './a.out 3 0' --warmup 2 # mutex 3threads |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| a.out: | |
| (__TEXT,__text) section | |
| __Z9parse_argPPci: | |
| 00000001000033a0 sub sp, sp, #0x50 | |
| 00000001000033a4 stp x24, x23, [sp, #0x10] | |
| 00000001000033a8 stp x22, x21, [sp, #0x20] | |
| 00000001000033ac stp x20, x19, [sp, #0x30] | |
| 00000001000033b0 stp x29, x30, [sp, #0x40] | |
| 00000001000033b4 add x29, sp, #0x40 | |
| 00000001000033b8 mov x19, x1 | |
| 00000001000033bc mov x20, x0 | |
| 00000001000033c0 bl 0x100003d80 ; symbol stub for: ___error | |
| 00000001000033c4 str wzr, [x0] | |
| 00000001000033c8 sxtw x22, w19 | |
| 00000001000033cc sbfiz x21, x19, #3, #32 | |
| 00000001000033d0 ldr x0, [x20, x21] | |
| 00000001000033d4 mov w23, #0xa | |
| 00000001000033d8 mov x1, sp | |
| 00000001000033dc mov w2, #0xa | |
| 00000001000033e0 bl 0x100003dc8 ; symbol stub for: _strtol | |
| 00000001000033e4 mov x19, x0 | |
| 00000001000033e8 ldr x8, [sp] | |
| 00000001000033ec ldr x9, [x20, x21] | |
| 00000001000033f0 cmp x8, x9 | |
| 00000001000033f4 b.eq 0x100003448 | |
| 00000001000033f8 ldrb w8, [x8] | |
| 00000001000033fc cbz w8, 0x10000348c | |
| 0000000100003400 nop | |
| 0000000100003404 ldr x0, #0xc4c ; literal pool symbol address: __ZNSt3__14cerrE | |
| 0000000100003408 adr x1, #0xa99 ; literal pool for: "Trailing characters after number: " | |
| 000000010000340c nop | |
| 0000000100003410 mov w2, #0x22 | |
| 0000000100003414 bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 0000000100003418 mov x21, x0 | |
| 000000010000341c ldr x20, [x20, x22, lsl #3] | |
| 0000000100003420 mov x0, x20 | |
| 0000000100003424 bl 0x100003dbc ; symbol stub for: _strlen | |
| 0000000100003428 mov x2, x0 | |
| 000000010000342c mov x0, x21 | |
| 0000000100003430 mov x1, x20 | |
| 0000000100003434 bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 0000000100003438 mov w8, #0xa | |
| 000000010000343c strb w8, [sp, #0xe] | |
| 0000000100003440 add x1, sp, #0xe | |
| 0000000100003444 b 0x1000034e0 | |
| 0000000100003448 nop | |
| 000000010000344c ldr x0, #0xc04 ; literal pool symbol address: __ZNSt3__14cerrE | |
| 0000000100003450 adr x1, #0xa40 ; literal pool for: "Invalid number: " | |
| 0000000100003454 nop | |
| 0000000100003458 mov w2, #0x10 | |
| 000000010000345c bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 0000000100003460 mov x21, x0 | |
| 0000000100003464 ldr x20, [x20, x22, lsl #3] | |
| 0000000100003468 mov x0, x20 | |
| 000000010000346c bl 0x100003dbc ; symbol stub for: _strlen | |
| 0000000100003470 mov x2, x0 | |
| 0000000100003474 mov x0, x21 | |
| 0000000100003478 mov x1, x20 | |
| 000000010000347c bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 0000000100003480 strb w23, [sp, #0xd] | |
| 0000000100003484 add x1, sp, #0xd | |
| 0000000100003488 b 0x1000034e0 | |
| 000000010000348c bl 0x100003d80 ; symbol stub for: ___error | |
| 0000000100003490 ldr w8, [x0] | |
| 0000000100003494 cmp w8, #0x22 | |
| 0000000100003498 b.ne 0x1000034e8 | |
| 000000010000349c nop | |
| 00000001000034a0 ldr x0, #0xbb0 ; literal pool symbol address: __ZNSt3__14cerrE | |
| 00000001000034a4 adr x1, #0xa20 ; literal pool for: "Number out of range: " | |
| 00000001000034a8 nop | |
| 00000001000034ac mov w2, #0x15 | |
| 00000001000034b0 bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 00000001000034b4 mov x21, x0 | |
| 00000001000034b8 ldr x20, [x20, x22, lsl #3] | |
| 00000001000034bc mov x0, x20 | |
| 00000001000034c0 bl 0x100003dbc ; symbol stub for: _strlen | |
| 00000001000034c4 mov x2, x0 | |
| 00000001000034c8 mov x0, x21 | |
| 00000001000034cc mov x1, x20 | |
| 00000001000034d0 bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 00000001000034d4 mov w8, #0xa | |
| 00000001000034d8 strb w8, [sp, #0xf] | |
| 00000001000034dc add x1, sp, #0xf | |
| 00000001000034e0 mov w2, #0x1 | |
| 00000001000034e4 bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 00000001000034e8 mov x0, x19 | |
| 00000001000034ec ldp x29, x30, [sp, #0x40] | |
| 00000001000034f0 ldp x20, x19, [sp, #0x30] | |
| 00000001000034f4 ldp x22, x21, [sp, #0x20] | |
| 00000001000034f8 ldp x24, x23, [sp, #0x10] | |
| 00000001000034fc add sp, sp, #0x50 | |
| 0000000100003500 ret | |
| _main: | |
| 0000000100003504 sub sp, sp, #0x70 | |
| 0000000100003508 stp x24, x23, [sp, #0x30] | |
| 000000010000350c stp x22, x21, [sp, #0x40] | |
| 0000000100003510 stp x20, x19, [sp, #0x50] | |
| 0000000100003514 stp x29, x30, [sp, #0x60] | |
| 0000000100003518 add x29, sp, #0x60 | |
| 000000010000351c cmp w0, #0x3 | |
| 0000000100003520 b.ne 0x100003628 | |
| 0000000100003524 mov x19, x1 | |
| 0000000100003528 mov x0, x1 | |
| 000000010000352c mov w1, #0x1 | |
| 0000000100003530 bl __Z9parse_argPPci | |
| 0000000100003534 mov x21, x0 | |
| 0000000100003538 mov x0, x19 | |
| 000000010000353c mov w1, #0x2 | |
| 0000000100003540 bl __Z9parse_argPPci | |
| 0000000100003544 mov x22, x0 | |
| 0000000100003548 stp xzr, xzr, [sp, #0x18] | |
| 000000010000354c str xzr, [sp, #0x28] | |
| 0000000100003550 cbz x21, 0x10000365c | |
| 0000000100003554 lsr x8, x21, #61 | |
| 0000000100003558 cbnz x8, 0x1000036b8 | |
| 000000010000355c lsl x23, x21, #3 | |
| 0000000100003560 mov x0, x23 | |
| 0000000100003564 bl 0x100003d50 ; symbol stub for: __Znwm | |
| 0000000100003568 mov x19, x0 | |
| 000000010000356c add x8, x0, x21, lsl #3 | |
| 0000000100003570 str x0, [sp, #0x18] | |
| 0000000100003574 str x8, [sp, #0x28] | |
| 0000000100003578 add x20, x23, x0 | |
| 000000010000357c mov x1, x23 | |
| 0000000100003580 bl 0x100003d8c ; symbol stub for: _bzero | |
| 0000000100003584 mov x23, #0x0 | |
| 0000000100003588 adr x8, #0x1f4 | |
| 000000010000358c nop | |
| 0000000100003590 adr x9, #0x194 | |
| 0000000100003594 nop | |
| 0000000100003598 str x20, [sp, #0x20] | |
| 000000010000359c cmp x22, #0x0 | |
| 00000001000035a0 csel x8, x9, x8, eq | |
| 00000001000035a4 str x8, [sp, #0x10] | |
| 00000001000035a8 adr x22, #0x994 | |
| 00000001000035ac nop | |
| 00000001000035b0 add x0, sp, #0x8 | |
| 00000001000035b4 add x1, sp, #0x10 | |
| 00000001000035b8 mov x2, x22 | |
| 00000001000035bc bl __ZNSt3__16threadC2IRPFviEJRKiEvEEOT_DpOT0_ | |
| 00000001000035c0 ldr x8, [x19, x23, lsl #3] | |
| 00000001000035c4 cbnz x8, 0x1000036b4 | |
| 00000001000035c8 ldr x8, [sp, #0x8] | |
| 00000001000035cc str x8, [x19, x23, lsl #3] | |
| 00000001000035d0 str xzr, [sp, #0x8] | |
| 00000001000035d4 add x0, sp, #0x8 | |
| 00000001000035d8 bl 0x100003d14 ; symbol stub for: __ZNSt3__16threadD1Ev | |
| 00000001000035dc add x23, x23, #0x1 | |
| 00000001000035e0 cmp x21, x23 | |
| 00000001000035e4 b.ne 0x1000035b0 | |
| 00000001000035e8 mov x21, x19 | |
| 00000001000035ec cmp x21, x20 | |
| 00000001000035f0 b.eq 0x100003688 | |
| 00000001000035f4 mov x22, x21 | |
| 00000001000035f8 mov x0, x22 | |
| 00000001000035fc bl 0x100003d08 ; symbol stub for: __ZNSt3__16thread4joinEv | |
| 0000000100003600 add x22, x22, #0x8 | |
| 0000000100003604 cmp x22, x20 | |
| 0000000100003608 b.ne 0x1000035f8 | |
| 000000010000360c cbz x21, 0x100003698 | |
| 0000000100003610 sub x20, x20, #0x8 | |
| 0000000100003614 mov x0, x20 | |
| 0000000100003618 bl 0x100003d14 ; symbol stub for: __ZNSt3__16threadD1Ev | |
| 000000010000361c cmp x20, x21 | |
| 0000000100003620 b.ne 0x100003610 | |
| 0000000100003624 b 0x100003690 | |
| 0000000100003628 nop | |
| 000000010000362c ldr x0, #0xa24 ; literal pool symbol address: __ZNSt3__14cerrE | |
| 0000000100003630 adr x1, #0x8aa ; literal pool for: "usage: prog [n_threads] [is_atomic '0' - mutex, any number - atomic ]\n" | |
| 0000000100003634 nop | |
| 0000000100003638 mov w2, #0x46 | |
| 000000010000363c bl __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m | |
| 0000000100003640 mov w0, #-0x1 | |
| 0000000100003644 ldp x29, x30, [sp, #0x60] | |
| 0000000100003648 ldp x20, x19, [sp, #0x50] | |
| 000000010000364c ldp x22, x21, [sp, #0x40] | |
| 0000000100003650 ldp x24, x23, [sp, #0x30] | |
| 0000000100003654 add sp, sp, #0x70 | |
| 0000000100003658 ret | |
| 000000010000365c mov x20, #0x0 | |
| 0000000100003660 mov x19, #0x0 | |
| 0000000100003664 adr x8, #0x118 | |
| 0000000100003668 nop | |
| 000000010000366c adr x9, #0xb8 | |
| 0000000100003670 nop | |
| 0000000100003674 cmp x22, #0x0 | |
| 0000000100003678 csel x8, x9, x8, eq | |
| 000000010000367c str x8, [sp, #0x10] | |
| 0000000100003680 cmp x21, x20 | |
| 0000000100003684 b.ne 0x1000035f4 | |
| 0000000100003688 cbz x21, 0x100003698 | |
| 000000010000368c mov x19, x21 | |
| 0000000100003690 mov x0, x19 | |
| 0000000100003694 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003698 mov w0, #0x0 | |
| 000000010000369c ldp x29, x30, [sp, #0x60] | |
| 00000001000036a0 ldp x20, x19, [sp, #0x50] | |
| 00000001000036a4 ldp x22, x21, [sp, #0x40] | |
| 00000001000036a8 ldp x24, x23, [sp, #0x30] | |
| 00000001000036ac add sp, sp, #0x70 | |
| 00000001000036b0 ret | |
| 00000001000036b4 bl 0x100003d38 ; symbol stub for: __ZSt9terminatev | |
| 00000001000036b8 add x0, sp, #0x18 | |
| 00000001000036bc bl __ZNKSt3__113__vector_baseINS_6threadENS_9allocatorIS1_EEE20__throw_length_errorEv | |
| 00000001000036c0 brk #0x1 | |
| 00000001000036c4 mov x22, x0 | |
| 00000001000036c8 ldr x0, [sp, #0x18] | |
| 00000001000036cc cbz x0, 0x1000036e4 | |
| 00000001000036d0 add x1, sp, #0x18 | |
| 00000001000036d4 bl _main.cold.1 | |
| 00000001000036d8 b 0x1000036e4 | |
| 00000001000036dc mov x22, x0 | |
| 00000001000036e0 cbnz x21, 0x1000036f4 | |
| 00000001000036e4 mov x0, x22 | |
| 00000001000036e8 bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| 00000001000036ec mov x22, x0 | |
| 00000001000036f0 mov x21, x19 | |
| 00000001000036f4 cmp x20, x21 | |
| 00000001000036f8 b.eq 0x100003714 | |
| 00000001000036fc sub x20, x20, #0x8 | |
| 0000000100003700 mov x0, x20 | |
| 0000000100003704 bl 0x100003d14 ; symbol stub for: __ZNSt3__16threadD1Ev | |
| 0000000100003708 cmp x20, x21 | |
| 000000010000370c b.ne 0x1000036fc | |
| 0000000100003710 mov x21, x19 | |
| 0000000100003714 mov x0, x21 | |
| 0000000100003718 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 000000010000371c mov x0, x22 | |
| 0000000100003720 bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| __ZN12_GLOBAL__N_110threadfuncEi: | |
| 0000000100003724 stp x22, x21, [sp, #-0x30]! | |
| 0000000100003728 stp x20, x19, [sp, #0x10] | |
| 000000010000372c stp x29, x30, [sp, #0x20] | |
| 0000000100003730 add x29, sp, #0x20 | |
| 0000000100003734 mov x19, x0 | |
| 0000000100003738 adrp x21, 5 ; 0x100008000 | |
| 000000010000373c str wzr, [x21, #0x40] | |
| 0000000100003740 adr x20, #0x48c0 | |
| 0000000100003744 nop | |
| 0000000100003748 mov x0, x20 | |
| 000000010000374c bl 0x100003ce4 ; symbol stub for: __ZNSt3__15mutex4lockEv | |
| 0000000100003750 ldr w8, [x21, #0x40] | |
| 0000000100003754 add w22, w8, #0x1 | |
| 0000000100003758 str w22, [x21, #0x40] | |
| 000000010000375c mov x0, x20 | |
| 0000000100003760 bl 0x100003cf0 ; symbol stub for: __ZNSt3__15mutex6unlockEv | |
| 0000000100003764 cmp w22, w19 | |
| 0000000100003768 b.lt 0x100003748 | |
| 000000010000376c ldp x29, x30, [sp, #0x20] | |
| 0000000100003770 ldp x20, x19, [sp, #0x10] | |
| 0000000100003774 ldp x22, x21, [sp], #0x30 | |
| 0000000100003778 ret | |
| __ZN12_GLOBAL__N_117threadfunc_atomicEi: | |
| 000000010000377c adr x8, #0x48c8 | |
| 0000000100003780 nop | |
| 0000000100003784 stlr wzr, [x8] | |
| 0000000100003788 mov w9, #0x1 | |
| 000000010000378c ldaddal w9, w10, [x8] | |
| 0000000100003790 ldar w10, [x8] | |
| 0000000100003794 cmp w10, w0 | |
| 0000000100003798 b.lt 0x10000378c | |
| 000000010000379c ret | |
| ___clang_call_terminate: | |
| 00000001000037a0 stp x29, x30, [sp, #-0x10]! | |
| 00000001000037a4 bl 0x100003d68 ; symbol stub for: ___cxa_begin_catch | |
| 00000001000037a8 bl 0x100003d38 ; symbol stub for: __ZSt9terminatev | |
| __ZNSt3__124__put_character_sequenceIcNS_11char_traitsIcEEEERNS_13basic_ostreamIT_T0_EES7_PKS4_m: | |
| 00000001000037ac sub sp, sp, #0x70 | |
| 00000001000037b0 stp x26, x25, [sp, #0x20] | |
| 00000001000037b4 stp x24, x23, [sp, #0x30] | |
| 00000001000037b8 stp x22, x21, [sp, #0x40] | |
| 00000001000037bc stp x20, x19, [sp, #0x50] | |
| 00000001000037c0 stp x29, x30, [sp, #0x60] | |
| 00000001000037c4 add x29, sp, #0x60 | |
| 00000001000037c8 mov x21, x2 | |
| 00000001000037cc mov x20, x1 | |
| 00000001000037d0 mov x19, x0 | |
| 00000001000037d4 add x0, sp, #0x8 | |
| 00000001000037d8 mov x1, x19 | |
| 00000001000037dc bl 0x100003c9c ; symbol stub for: __ZNSt3__113basic_ostreamIcNS_11char_traitsIcEEE6sentryC1ERS3_ | |
| 00000001000037e0 ldrb w8, [sp, #0x8] | |
| 00000001000037e4 cbz w8, 0x10000388c | |
| 00000001000037e8 ldr x8, [x19] | |
| 00000001000037ec ldur x8, [x8, #-0x18] | |
| 00000001000037f0 add x22, x19, x8 | |
| 00000001000037f4 ldr x23, [x22, #0x28] | |
| 00000001000037f8 ldr w25, [x22, #0x8] | |
| 00000001000037fc ldr w24, [x22, #0x90] | |
| 0000000100003800 cmn w24, #0x1 | |
| 0000000100003804 b.ne 0x100003844 | |
| 0000000100003808 add x8, sp, #0x18 | |
| 000000010000380c mov x0, x22 | |
| 0000000100003810 bl 0x100003c90 ; symbol stub for: __ZNKSt3__18ios_base6getlocEv | |
| 0000000100003814 nop | |
| 0000000100003818 ldr x1, #0x840 ; literal pool symbol address: __ZNSt3__15ctypeIcE2idE | |
| 000000010000381c add x0, sp, #0x18 | |
| 0000000100003820 bl 0x100003c84 ; symbol stub for: __ZNKSt3__16locale9use_facetERNS0_2idE | |
| 0000000100003824 ldr x8, [x0] | |
| 0000000100003828 ldr x8, [x8, #0x38] | |
| 000000010000382c mov w1, #0x20 | |
| 0000000100003830 blr x8 | |
| 0000000100003834 mov x24, x0 | |
| 0000000100003838 add x0, sp, #0x18 | |
| 000000010000383c bl 0x100003cfc ; symbol stub for: __ZNSt3__16localeD1Ev | |
| 0000000100003840 str w24, [x22, #0x90] | |
| 0000000100003844 add x3, x20, x21 | |
| 0000000100003848 mov w8, #0xb0 | |
| 000000010000384c and w8, w25, w8 | |
| 0000000100003850 cmp w8, #0x20 | |
| 0000000100003854 csel x2, x3, x20, eq | |
| 0000000100003858 sxtb w5, w24 | |
| 000000010000385c mov x0, x23 | |
| 0000000100003860 mov x1, x20 | |
| 0000000100003864 mov x4, x22 | |
| 0000000100003868 bl __ZNSt3__116__pad_and_outputIcNS_11char_traitsIcEEEENS_19ostreambuf_iteratorIT_T0_EES6_PKS4_S8_S8_RNS_8ios_baseES4_ | |
| 000000010000386c cbnz x0, 0x10000388c | |
| 0000000100003870 ldr x8, [x19] | |
| 0000000100003874 ldur x8, [x8, #-0x18] | |
| 0000000100003878 add x0, x19, x8 | |
| 000000010000387c ldr w8, [x0, #0x20] | |
| 0000000100003880 mov w9, #0x5 | |
| 0000000100003884 orr w1, w8, w9 | |
| 0000000100003888 bl 0x100003d2c ; symbol stub for: __ZNSt3__18ios_base5clearEj | |
| 000000010000388c add x0, sp, #0x8 | |
| 0000000100003890 bl 0x100003ca8 ; symbol stub for: __ZNSt3__113basic_ostreamIcNS_11char_traitsIcEEE6sentryD1Ev | |
| 0000000100003894 mov x0, x19 | |
| 0000000100003898 ldp x29, x30, [sp, #0x60] | |
| 000000010000389c ldp x20, x19, [sp, #0x50] | |
| 00000001000038a0 ldp x22, x21, [sp, #0x40] | |
| 00000001000038a4 ldp x24, x23, [sp, #0x30] | |
| 00000001000038a8 ldp x26, x25, [sp, #0x20] | |
| 00000001000038ac add sp, sp, #0x70 | |
| 00000001000038b0 ret | |
| 00000001000038b4 b 0x1000038c8 | |
| 00000001000038b8 mov x20, x0 | |
| 00000001000038bc add x0, sp, #0x18 | |
| 00000001000038c0 bl 0x100003cfc ; symbol stub for: __ZNSt3__16localeD1Ev | |
| 00000001000038c4 b 0x1000038cc | |
| 00000001000038c8 mov x20, x0 | |
| 00000001000038cc add x0, sp, #0x8 | |
| 00000001000038d0 bl 0x100003ca8 ; symbol stub for: __ZNSt3__113basic_ostreamIcNS_11char_traitsIcEEE6sentryD1Ev | |
| 00000001000038d4 b 0x1000038dc | |
| 00000001000038d8 mov x20, x0 | |
| 00000001000038dc mov x0, x20 | |
| 00000001000038e0 bl 0x100003d68 ; symbol stub for: ___cxa_begin_catch | |
| 00000001000038e4 ldr x8, [x19] | |
| 00000001000038e8 ldur x8, [x8, #-0x18] | |
| 00000001000038ec add x0, x19, x8 | |
| 00000001000038f0 bl 0x100003d20 ; symbol stub for: __ZNSt3__18ios_base33__set_badbit_and_consider_rethrowEv | |
| 00000001000038f4 bl 0x100003d74 ; symbol stub for: ___cxa_end_catch | |
| 00000001000038f8 b 0x100003894 | |
| 00000001000038fc mov x19, x0 | |
| 0000000100003900 bl 0x100003d74 ; symbol stub for: ___cxa_end_catch | |
| 0000000100003904 mov x0, x19 | |
| 0000000100003908 bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| 000000010000390c bl ___clang_call_terminate | |
| __ZNSt3__116__pad_and_outputIcNS_11char_traitsIcEEEENS_19ostreambuf_iteratorIT_T0_EES6_PKS4_S8_S8_RNS_8ios_baseES4_: | |
| 0000000100003910 sub sp, sp, #0x70 | |
| 0000000100003914 stp x26, x25, [sp, #0x20] | |
| 0000000100003918 stp x24, x23, [sp, #0x30] | |
| 000000010000391c stp x22, x21, [sp, #0x40] | |
| 0000000100003920 stp x20, x19, [sp, #0x50] | |
| 0000000100003924 stp x29, x30, [sp, #0x60] | |
| 0000000100003928 add x29, sp, #0x60 | |
| 000000010000392c mov x19, x0 | |
| 0000000100003930 cbz x0, 0x100003a54 | |
| 0000000100003934 mov x24, x5 | |
| 0000000100003938 mov x20, x4 | |
| 000000010000393c mov x22, x3 | |
| 0000000100003940 mov x21, x2 | |
| 0000000100003944 ldr x8, [x4, #0x18] | |
| 0000000100003948 sub x9, x3, x1 | |
| 000000010000394c subs x8, x8, x9 | |
| 0000000100003950 csel x23, x8, xzr, gt | |
| 0000000100003954 sub x25, x2, x1 | |
| 0000000100003958 cmp x25, #0x1 | |
| 000000010000395c b.lt 0x10000397c | |
| 0000000100003960 ldr x8, [x19] | |
| 0000000100003964 ldr x8, [x8, #0x60] | |
| 0000000100003968 mov x0, x19 | |
| 000000010000396c mov x2, x25 | |
| 0000000100003970 blr x8 | |
| 0000000100003974 cmp x0, x25 | |
| 0000000100003978 b.ne 0x100003a50 | |
| 000000010000397c cmp x23, #0x1 | |
| 0000000100003980 b.lt 0x100003a1c | |
| 0000000100003984 cmp x23, #0x17 | |
| 0000000100003988 b.hs 0x100003998 | |
| 000000010000398c add x25, sp, #0x8 | |
| 0000000100003990 strb w23, [sp, #0x1f] | |
| 0000000100003994 b 0x1000039b8 | |
| 0000000100003998 add x8, x23, #0x10 | |
| 000000010000399c and x26, x8, #0xfffffffffffffff0 | |
| 00000001000039a0 mov x0, x26 | |
| 00000001000039a4 bl 0x100003d50 ; symbol stub for: __Znwm | |
| 00000001000039a8 mov x25, x0 | |
| 00000001000039ac orr x8, x26, #0x8000000000000000 | |
| 00000001000039b0 stp x23, x8, [sp, #0x10] | |
| 00000001000039b4 str x0, [sp, #0x8] | |
| 00000001000039b8 mov x0, x25 | |
| 00000001000039bc mov x1, x24 | |
| 00000001000039c0 mov x2, x23 | |
| 00000001000039c4 bl 0x100003d98 ; symbol stub for: _memset | |
| 00000001000039c8 strb wzr, [x25, x23] | |
| 00000001000039cc ldrsb w8, [sp, #0x1f] | |
| 00000001000039d0 ldr x9, [sp, #0x8] | |
| 00000001000039d4 cmp w8, #0x0 | |
| 00000001000039d8 add x8, sp, #0x8 | |
| 00000001000039dc csel x1, x9, x8, lt | |
| 00000001000039e0 ldr x8, [x19] | |
| 00000001000039e4 ldr x8, [x8, #0x60] | |
| 00000001000039e8 mov x0, x19 | |
| 00000001000039ec mov x2, x23 | |
| 00000001000039f0 blr x8 | |
| 00000001000039f4 mov x24, x0 | |
| 00000001000039f8 ldrsb w8, [sp, #0x1f] | |
| 00000001000039fc tbnz w8, #0x1f, 0x100003a0c | |
| 0000000100003a00 cmp x24, x23 | |
| 0000000100003a04 b.ne 0x100003a50 | |
| 0000000100003a08 b 0x100003a1c | |
| 0000000100003a0c ldr x0, [sp, #0x8] | |
| 0000000100003a10 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003a14 cmp x24, x23 | |
| 0000000100003a18 b.ne 0x100003a50 | |
| 0000000100003a1c sub x22, x22, x21 | |
| 0000000100003a20 cmp x22, #0x1 | |
| 0000000100003a24 b.lt 0x100003a48 | |
| 0000000100003a28 ldr x8, [x19] | |
| 0000000100003a2c ldr x8, [x8, #0x60] | |
| 0000000100003a30 mov x0, x19 | |
| 0000000100003a34 mov x1, x21 | |
| 0000000100003a38 mov x2, x22 | |
| 0000000100003a3c blr x8 | |
| 0000000100003a40 cmp x0, x22 | |
| 0000000100003a44 b.ne 0x100003a50 | |
| 0000000100003a48 str xzr, [x20, #0x18] | |
| 0000000100003a4c b 0x100003a54 | |
| 0000000100003a50 mov x19, #0x0 | |
| 0000000100003a54 mov x0, x19 | |
| 0000000100003a58 ldp x29, x30, [sp, #0x60] | |
| 0000000100003a5c ldp x20, x19, [sp, #0x50] | |
| 0000000100003a60 ldp x22, x21, [sp, #0x40] | |
| 0000000100003a64 ldp x24, x23, [sp, #0x30] | |
| 0000000100003a68 ldp x26, x25, [sp, #0x20] | |
| 0000000100003a6c add sp, sp, #0x70 | |
| 0000000100003a70 ret | |
| 0000000100003a74 mov x19, x0 | |
| 0000000100003a78 ldrsb w8, [sp, #0x1f] | |
| 0000000100003a7c tbz w8, #0x1f, 0x100003a88 | |
| 0000000100003a80 ldr x0, [sp, #0x8] | |
| 0000000100003a84 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003a88 mov x0, x19 | |
| 0000000100003a8c bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| __ZNKSt3__113__vector_baseINS_6threadENS_9allocatorIS1_EEE20__throw_length_errorEv: | |
| 0000000100003a90 stp x29, x30, [sp, #-0x10]! | |
| 0000000100003a94 mov x29, sp | |
| 0000000100003a98 bl 0x100003c78 ; symbol stub for: __ZNKSt3__120__vector_base_commonILb1EE20__throw_length_errorEv | |
| __ZNSt3__16threadC2IRPFviEJRKiEvEEOT_DpOT0_: | |
| 0000000100003a9c stp x24, x23, [sp, #-0x40]! | |
| 0000000100003aa0 stp x22, x21, [sp, #0x10] | |
| 0000000100003aa4 stp x20, x19, [sp, #0x20] | |
| 0000000100003aa8 stp x29, x30, [sp, #0x30] | |
| 0000000100003aac add x29, sp, #0x30 | |
| 0000000100003ab0 mov x22, x2 | |
| 0000000100003ab4 mov x23, x1 | |
| 0000000100003ab8 mov x20, x0 | |
| 0000000100003abc mov w0, #0x8 | |
| 0000000100003ac0 bl 0x100003d50 ; symbol stub for: __Znwm | |
| 0000000100003ac4 mov x21, x0 | |
| 0000000100003ac8 bl 0x100003cb4 ; symbol stub for: __ZNSt3__115__thread_structC1Ev | |
| 0000000100003acc mov w0, #0x18 | |
| 0000000100003ad0 bl 0x100003d50 ; symbol stub for: __Znwm | |
| 0000000100003ad4 mov x19, x0 | |
| 0000000100003ad8 ldr x8, [x23] | |
| 0000000100003adc ldr w9, [x22] | |
| 0000000100003ae0 stp x21, x8, [x0] | |
| 0000000100003ae4 str w9, [x0, #0x10] | |
| 0000000100003ae8 adr x2, #0x88 | |
| 0000000100003aec nop | |
| 0000000100003af0 mov x0, x20 | |
| 0000000100003af4 mov x1, #0x0 | |
| 0000000100003af8 mov x3, x19 | |
| 0000000100003afc bl 0x100003da4 ; symbol stub for: _pthread_create | |
| 0000000100003b00 cbnz w0, 0x100003b1c | |
| 0000000100003b04 mov x0, x20 | |
| 0000000100003b08 ldp x29, x30, [sp, #0x30] | |
| 0000000100003b0c ldp x20, x19, [sp, #0x20] | |
| 0000000100003b10 ldp x22, x21, [sp, #0x10] | |
| 0000000100003b14 ldp x24, x23, [sp], #0x40 | |
| 0000000100003b18 ret | |
| 0000000100003b1c adr x1, #0x405 ; literal pool for: "thread constructor failed" | |
| 0000000100003b20 nop | |
| 0000000100003b24 bl 0x100003cd8 ; symbol stub for: __ZNSt3__120__throw_system_errorEiPKc | |
| 0000000100003b28 brk #0x1 | |
| 0000000100003b2c mov x20, x0 | |
| 0000000100003b30 mov x0, x21 | |
| 0000000100003b34 bl 0x100003cc0 ; symbol stub for: __ZNSt3__115__thread_structD1Ev | |
| 0000000100003b38 b 0x100003b60 | |
| 0000000100003b3c mov x20, x0 | |
| 0000000100003b40 b 0x100003b60 | |
| 0000000100003b44 mov x20, x0 | |
| 0000000100003b48 ldr x0, [x19] | |
| 0000000100003b4c str xzr, [x19] | |
| 0000000100003b50 cbz x0, 0x100003b5c | |
| 0000000100003b54 bl 0x100003cc0 ; symbol stub for: __ZNSt3__115__thread_structD1Ev | |
| 0000000100003b58 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003b5c mov x21, x19 | |
| 0000000100003b60 mov x0, x21 | |
| 0000000100003b64 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003b68 mov x0, x20 | |
| 0000000100003b6c bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| __ZNSt3__1L14__thread_proxyINS_5tupleIJNS_10unique_ptrINS_15__thread_structENS_14default_deleteIS3_EEEEPFviEiEEEEEPvSA_: | |
| 0000000100003b70 stp x20, x19, [sp, #-0x20]! | |
| 0000000100003b74 stp x29, x30, [sp, #0x10] | |
| 0000000100003b78 add x29, sp, #0x10 | |
| 0000000100003b7c mov x19, x0 | |
| 0000000100003b80 bl 0x100003ccc ; symbol stub for: __ZNSt3__119__thread_local_dataEv | |
| 0000000100003b84 ldr x1, [x19] | |
| 0000000100003b88 str xzr, [x19] | |
| 0000000100003b8c ldr x0, [x0] | |
| 0000000100003b90 bl 0x100003db0 ; symbol stub for: _pthread_setspecific | |
| 0000000100003b94 ldr x8, [x19, #0x8] | |
| 0000000100003b98 ldr w0, [x19, #0x10] | |
| 0000000100003b9c blr x8 | |
| 0000000100003ba0 ldr x0, [x19] | |
| 0000000100003ba4 str xzr, [x19] | |
| 0000000100003ba8 cbz x0, 0x100003bb4 | |
| 0000000100003bac bl 0x100003cc0 ; symbol stub for: __ZNSt3__115__thread_structD1Ev | |
| 0000000100003bb0 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003bb4 mov x0, x19 | |
| 0000000100003bb8 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003bbc mov x0, #0x0 | |
| 0000000100003bc0 ldp x29, x30, [sp, #0x10] | |
| 0000000100003bc4 ldp x20, x19, [sp], #0x20 | |
| 0000000100003bc8 ret | |
| 0000000100003bcc mov x20, x0 | |
| 0000000100003bd0 cbnz x19, 0x100003bdc | |
| 0000000100003bd4 b 0x100003bf8 | |
| 0000000100003bd8 mov x20, x0 | |
| 0000000100003bdc ldr x0, [x19] | |
| 0000000100003be0 str xzr, [x19] | |
| 0000000100003be4 cbz x0, 0x100003bf0 | |
| 0000000100003be8 bl 0x100003cc0 ; symbol stub for: __ZNSt3__115__thread_structD1Ev | |
| 0000000100003bec bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003bf0 mov x0, x19 | |
| 0000000100003bf4 bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003bf8 mov x0, x20 | |
| 0000000100003bfc bl 0x100003c6c ; symbol stub for: __Unwind_Resume | |
| __GLOBAL__sub_I_atomic_vs_mutex_cnt.cpp: | |
| 0000000100003c00 nop | |
| 0000000100003c04 ldr x0, #0x46c ; literal pool symbol address: __ZNSt3__15mutexD1Ev | |
| 0000000100003c08 adr x1, #0x43f8 | |
| 0000000100003c0c nop | |
| 0000000100003c10 adr x2, #-0x3c10 | |
| 0000000100003c14 nop | |
| 0000000100003c18 b 0x100003d5c ; symbol stub for: ___cxa_atexit | |
| _main.cold.1: | |
| 0000000100003c1c stp x20, x19, [sp, #-0x20]! | |
| 0000000100003c20 stp x29, x30, [sp, #0x10] | |
| 0000000100003c24 add x29, sp, #0x10 | |
| 0000000100003c28 mov x19, x1 | |
| 0000000100003c2c mov x20, x0 | |
| 0000000100003c30 ldr x0, [x1, #0x8] | |
| 0000000100003c34 cmp x0, x20 | |
| 0000000100003c38 b.eq 0x100003c54 | |
| 0000000100003c3c sub x0, x0, #0x8 | |
| 0000000100003c40 bl 0x100003d14 ; symbol stub for: __ZNSt3__16threadD1Ev | |
| 0000000100003c44 cmp x0, x20 | |
| 0000000100003c48 b.ne 0x100003c3c | |
| 0000000100003c4c ldr x0, [x19] | |
| 0000000100003c50 b 0x100003c58 | |
| 0000000100003c54 mov x0, x20 | |
| 0000000100003c58 str x20, [x19, #0x8] | |
| 0000000100003c5c bl 0x100003d44 ; symbol stub for: __ZdlPv | |
| 0000000100003c60 ldp x29, x30, [sp, #0x10] | |
| 0000000100003c64 ldp x20, x19, [sp], #0x20 | |
| 0000000100003c68 ret |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import matplotlib | |
| import matplotlib.pyplot as plt | |
| import seaborn as sns | |
| import pandas as pd | |
| sns.set_style("darkgrid") | |
| matplotlib.rcParams["figure.dpi"] = 300 | |
| df = pd.read_csv('counter_perf.csv') | |
| atomic_seconds = df[df.isatomic != 0] | |
| atomic_seconds = atomic_seconds.rename(columns={"seconds": "atomic_seconds"}) | |
| atomic_seconds.reset_index(inplace=True) | |
| atomic_seconds = atomic_seconds.drop(['isatomic', 'index'], axis=1) | |
| mutex_seconds = df[df.isatomic == 0] | |
| mutex_seconds = mutex_seconds.rename(columns={"seconds": "mutex_seconds"}) | |
| mutex_seconds.reset_index(inplace=True) | |
| mutex_seconds = mutex_seconds.drop(['isatomic', 'n_threads', 'index'], axis=1) | |
| x = pd.concat([mutex_seconds, atomic_seconds], axis = 1) | |
| ax = x.set_index('n_threads').plot() | |
| ax.set_ylabel('Seconds') | |
| plt.savefig('mutex_vs_atomic_m2_chart.png') |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import time | |
| import subprocess | |
| n_samples = 5 | |
| print('n_threads,isatomic,seconds') | |
| for n_threads in range(1, 11): | |
| for sync in [0, 1]: | |
| for run in range(n_samples): | |
| tik = time.time() | |
| subprocess.run(f'./a.out {n_threads} {sync}'.split()) | |
| tok = time.time() | |
| print(f'{n_threads},{sync},{tok-tik}') |
Author
dmitryhd
commented
Apr 11, 2023
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
