SportVoice MVP — Micro-Milestone Architecture Brief

Prepared by: Ibrahim Elsherbini
For: Jason Vanderheyden
Date: February 2026

---

1. Scope of This Brief

This brief is intentionally scoped to the two items requested for the paid micro-milestone:

1. Electron audio routing: USB mic + system audio into the selected WebRTC transport (LiveKit or Daily).
2. Chrome Manifest V3 sync engine: ACRCloud offset matching + drift mitigation in the extension.

Out of scope for this document: vendor pricing analysis, long-term roadmap, and non-MVP product strategy.

---

2. High-Level Architecture

Source View

Creator Studio (Electron)
  ├─ Mic input ───────────────┐
  ├─ System audio input ──────┼─> Mix path -> WebRTC publish -> LiveKit/Daily room
  └─ System audio clean split ┘
                 |
                 v
        Sync API (backend service) -> ACRCloud (reference ingest + identify)

Viewer (Chrome MV3)
  Popup/UI -> Service Worker (orchestration) -> Offscreen Document (persistent audio runtime)
                                              ├-> Captures tab audio sample for ACRCloud matching
                                              └-> Subscribes to creator stream from LiveKit/Daily
                                                   and plays aligned creator audio

Design principle: transport and sync are decoupled. LiveKit/Daily handles low-latency delivery; synchronization decisions come from ACRCloud offset + local playback timing. Sync relies on ACRCloud + local playback clock (not provider timestamps alone), so the strategy remains stable across LiveKit or Daily.

---

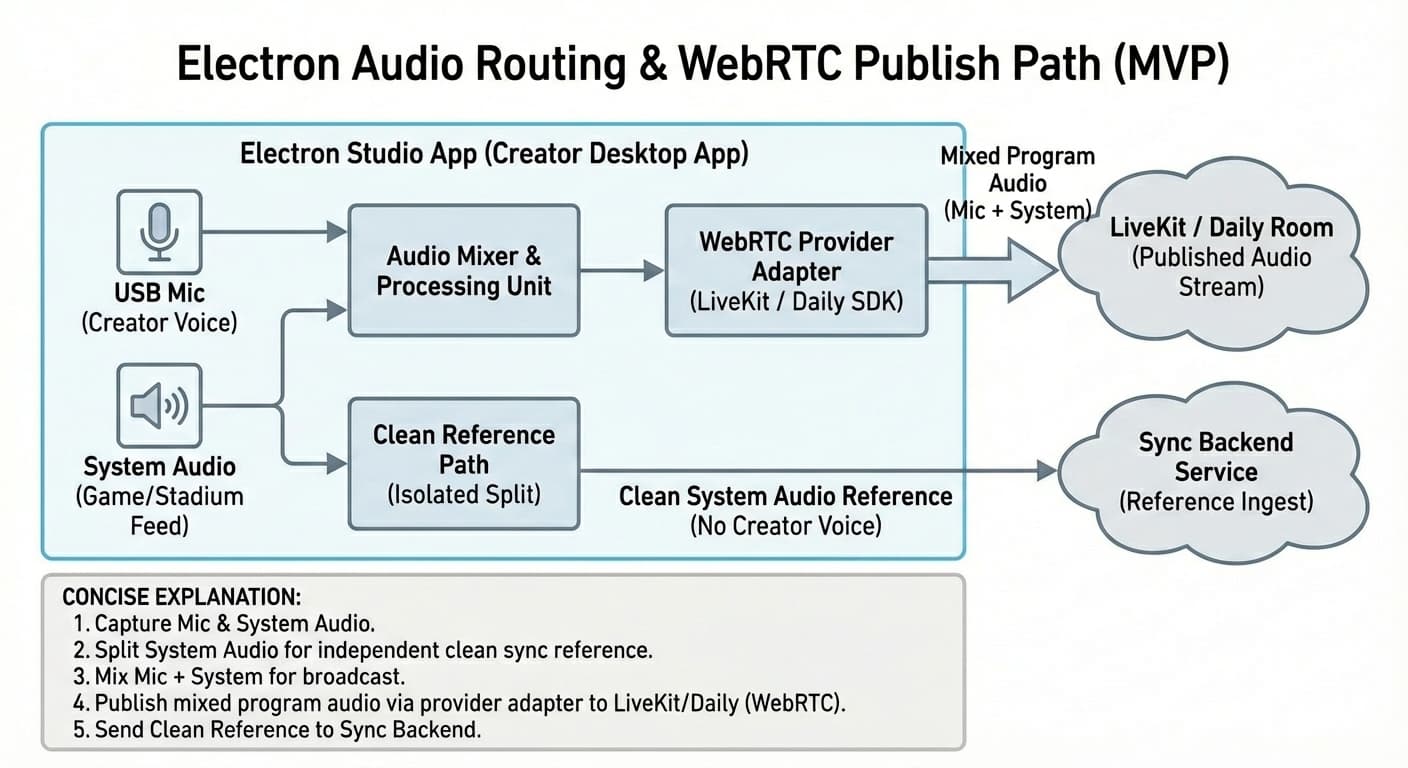

3. Electron Studio Audio Routing (LiveKit/Daily)

Inputs

1. USB microphone (creator voice)
2. System audio (game/stadium feed)

Internal Audio Graph

System Audio -> Split
                ├-> Gain(game) -> Mixer -> Out track (creator program mix)
                └-> Clean reference channel (no creator voice)
Mic -----------> Gain(mic) ----^

Outputs

1. Broadcast output (mixed): published to LiveKit/Daily as the creator audio program heard by viewers.
2. Sync reference output (clean system audio): sent to backend for fingerprint matching reference.

Reference feed use: the clean system-audio split is used as the reference input for the ACRCloud matching workflow (exact ingest mode validated during M1).

Provider Integration (Scoped)

Implementation is provider-agnostic at architecture level:

1. Publisher side: use selected provider SDK/API to publish creator mixed audio track.
2. Subscriber side: extension subscribes to provider audio stream for playback.
3. No sync logic tied to provider internals: switching LiveKit <-> Daily changes publish/subscribe integration, not the sync algorithm.

OS Capture Assumptions

1. Windows: WASAPI loopback for system audio capture.
2. macOS: virtual loopback driver (for example BlackHole) required for reliable system audio routing.

---

4. MV3 Sync Engine (ACRCloud + Drift Control)

MV3 Component Roles

1. Service Worker: lifecycle orchestration, permission flow, start/stop actions.
2. Offscreen Document: persistent runtime for Web Audio + WebRTC playback + sync loop.
3. Popup/Content UI: viewer controls and status display.

Playback and Sync Sequence

1. Viewer clicks Start.
2. Service worker creates/ensures offscreen document.
3. Offscreen document captures tab audio sample (before muting native page audio/output).
4. Offscreen sends sample to backend; backend calls ACRCloud identify API.
5. Backend returns matched offset (play position reference).
6. Offscreen subscribes/plays creator stream from LiveKit/Daily aligned to returned position.
7. Only after alignment is confirmed, extension mutes native tab audio.

Offset Mapping

At sync points, extension resolves:

viewer_position = matched_reference_timestamp + play_offset_ms

Then maps viewer_position to creator audio timeline and updates playback cursor accordingly. The offscreen runtime compares current playback time vs target viewer_position and applies either rate nudging (small drift) or re-seek/rebuffer (large drift) to restore sync.

---

5. Drift Mitigation and Buffer Recovery

Drift Policy

1. Small drift (for example <= ~200 ms): playback-rate nudging (about +/-1% to +/-2% max).
2. Medium drift: short micro-seek/rebuffer adjustment.
3. Large drift or unstable state: hard re-sync using fresh fingerprint sample.

Re-sync Triggers

1. Periodic interval (for example every 30–60 seconds).
2. Buffering/stall detection (tab audio silence or playback stall).
3. Viewer seek/jump events.
4. Drift threshold breach.

No-match fallback (MVP): coast on last known offset for a short window, retry fingerprint, and expose manual resync control if confidence remains low.

3-Second Buffer Case (Interview Question)

If viewer network buffers for ~3 seconds:

1. Detect stall/silence in viewer tab.
2. Immediately pause creator playback (avoid speaking over frozen game).
3. Capture fresh tab sample after stream resumes.
4. Re-identify offset via ACRCloud.
5. Resume creator audio at corrected position (optional short crossfade for smoothness).

Result: playback re-locks to viewer’s current game moment without manual user adjustment.

---

6. Risks and Assumptions (MVP)

1. System audio capture differs by OS and requires setup validation (especially macOS loopback path).
2. Cross-provider commentary differences can reduce fingerprint confidence; validate with real game samples in M1.
3. ACRCloud no-match/outage path requires fallback behavior (coast + retry + manual +/- slider).
4. Drift thresholds are tuned empirically during validation (network conditions and stream variance).
5. Final transport SDK specifics depend on whether LiveKit or Daily is selected before implementation starts.

---

This brief is intentionally scoped to architecture alignment for the MVP micro-milestone.
If helpful, I can provide a separate technical appendix with implementation pseudocode and validation test cases.
