Compare TCP/IP & OSI Model

TCP/IP Model	Protocols and Services	OSI Model	Devices	Security
Application	HTTP, FTTP, Telnet,NTP, DHCP,PING, DNS, SMTP	7.Application(HTTP,DNS,FTP), 6.Presentation(encryption), 5.Session(connection)	7.Firewall, 6.Encrypt_Decryption, 5.Connection_Authentication, Stateful(3+4+5)Firewall	6.SSL>>TLS:Encode/Encrypt, Proxy+IPS>man-in-middle. 5.RPC+Update++
Transport	TCP/UDP(Port#)	4.Transport(bit)	Heart of OSI, 4.Firewall-Circuit_Firewall	4.Package-Filter>Port_scanner
Network	Ping: IP(Address), ARP, ICMP, IGMP	3.Network(packets)	3.Router+Switch	3.Package-Filter> ping_Flood, IPS>Spoofing
Network Interface	Ethernet	2.Data Link(Frame: protocol:802.11,802.3), 1.Physical	2.Network_card_Swith_Bridge_ Repeater 1.Cable/Connector/Hub)	2.IPS>Spoofing,VLAN:Trunk-/Access+, 1.Fiber+/Cat6-

Cables for RJ45 ( 4 pairs )

Types	GpsxMeter
Cat5	100Mbpsx100
Cat5e	1Gbpsx100
Cat6	10Gbpsx10
Cat6e	10Gbpsx100
Fiber	Use
Multi Mode	<500Mx1
Sigle Mode	x50 high Freq.

Network Standard

IEEE Standards for Wired Ethernet Networks

IEEE Standards	Year	description
802.3i	1990	10BASE-T: 10Mbps over UTP
802.3j	1993	+ Fiber Optic cable options
802.3u	1995	Fast Ethernet 100 Mbpas
802.3x	1997	Full-duplex
802.3z	1998	1000BASE-X:1 Gbps Fiber
802.3ab	1999	1000BASE-T: 1Gbps UTP
802.3ae	2000	10GBASE-X: 10Gbps Fiber
802.3af	2003	PoE 15 watts
802.3ak	2004	twinaxial cables for rack
802.3an	2006	10Gbps: UTP
802.3bs	2017	200,400Gbps over fiber-optic
802.3bt	2018	+ PoE 100W

IEEE Standards for Wireless Networks

IEEE Standards	Year	description
802.11a	1999	54 Mbps 5 Ghz
802.11b	2000	11 Mbps 2.4 Ghz
802.11g	2003	54 Mbps 2.4 Ghz
802.11n	2007	gx4,5 Mbps MIMO
802.11ac	2013	433 Mbps/Signal, 1.3 Gbps in three-signal design
802.11ax	2019	ac, Wi-Fi 6, 6Ghz, 1-10 Gbps

• PAN: Personal Area Network
• LAN: router, switch
• WLAN: wireless router
• CAN: Campus Area Network
• MAN:
• WAN: No area limit :internet

Network Topology

• Bus [==========]: Satelite Disk
• Ring: No terminator
• Star: switch to pcs
• Mesh: highly available, redundancy

Virtualization:

• Hypervisor: ESXi

Cloud Service Models:Iaas, PaaS, SaaS

Cloud Demployment Models: Private, Public, Community, Hybrid and Multi

3. Network Security

• Social Engineering
• Firewall not update
• Poor physical security Measures
• weak Password or Using default password
• Personal Devicess Within the Networks: BOYD
• Zero-Day: Protecting against the Unknown thread (0 day known yet)

Attacker Type

• Vulnerability Testers : Good guy but some bad.!
• Blue, Red, White and Purple team(continuous Improvement)
• HACKER: WHITE HAT, Black Hat, Gray Hat
• Insider Threats
• Nation States
• Scripts Kiddies

Common Threats and Attacks

• Wiretapping: packet Sniffer
• Port Scanning
• Taking Control: SQL injection, Buffer (NX-Bit enable to protect)
• Spoofing: man-in-the-middle, ARP Poisoning to Flood all traffic/every switch port(2,3)
• Distributed Denial-of-Service(DDOS: Smurf attack(victim address send to all computers to get reply) | Cat5e | 1Gbpsx100|
• Social Engineering: Impersonation, Phishing

Protection

• Honeypo: then IDS the trackert
• Proactive and Preventive Measures
• Risk Mitigation Response: Anti-Virus for rootkits, backdoor and Trojan hourses

CIA Triad

• Confidentiality
• Integrity
• Availability

Firewal

• Packet Filters: OSI:3.Network address ?,4.Transport TCP/UDP port ? only check address/port
• Circuit Level Gateway: Only check: Source/Destination NAT/Port (Level 4 Transport)
• Stateful Inspection: Dynamic Rule set up to begin in H/W (3-5)
• Application or Level 7 and under Firewall : Inspect content in Proxy Server

IDS and IPS (Intrusion Detection and Prevention)

• ------Own Network Switch -------IPS-------Internet | V IDS

Network Commands

- Nmap
- Traceroute
- NSLookup
- Netstat
- TRACERT
- route
- arp
- ††

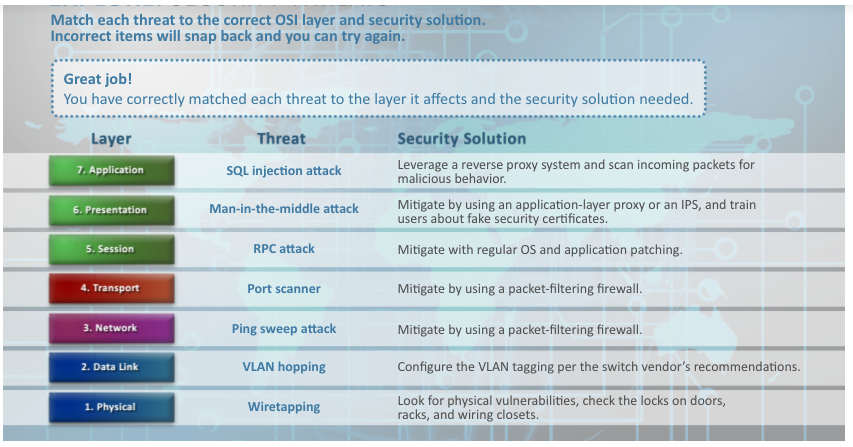

Network Security Operations

Level 1: Physical wiretapping or eavesdropping

Level 2: Data Link - Wireless attache Layer 1 Signal ========| Access point block (WAP) - Deauthen attack Level 2 (Decrypt Username/password with WAP) = Solution: WPA2 or WPA3 will help

- Wired Network Layer 2 eavesdrop all network traffic<=======> FIB flood |==== Good traffic===>Hager
    = Solution: IDS/IPS
- VLAN in trunk mode
    = Solution config to access mode

Level 3: Network - Ping Sweep attacek to gain information = packet-filtering firewall - Spoofing = IPS prevent attack

Level 4: Transport - port scanner = package filtering firewall

Level 5: Session - RPC = Upgrade OS, Application patch

Level 6: Presentation - man-in-the-middle attack = Application Layer proxy or IPS

Level 7: Application - SQL injection, buffer overrun attacks = IPS, Layer 7 Leverage Proxy System and scan income packets.

---

Encryption Techniques and Fundamentals

• Symmetric encryption 1 key (encrypt/decrypt same key)
  • AES:
• Asymetric encryption 2 key pair
  • public

Network Security Operation

• AES > DES

AES	DES	WEP	WPA +TKIP	WPA2 CCMP	WPA3
128,192,256	56 bit only	40,104	variable 128-bit encription @packets	CCMP	SAE
Faster	Slow	replaced by WPA	8-63 Char+packets	CCMP	802.11W encription of management frame

Wireless Attack Types

---

• Deauth Attack: Dos (Denial of Service): Prevent access to Network, Fake HotSpot for U/P, Capture WPA Handshake !=====> WPA3 (or WPA2) with Good Passphrase
• Fake Access: Fake hotspot =====> VPN

User Authentication and Access Control

---

• AAA:
  • Authentication: MFA, Fob Token, Bio, Mobile devices
  • Authorization
  • Accounting

Device Hardening

---

Process to secure all hardwares

• Change Default Passwords
• Remove Unnecessary Logins
• Enforce Strong Password Policy
• Remove Unnecessary Services
• Keep update Patches
• Limit Physical access to the Device
• Allow Change from a Trusted Network
  • Only inside Network can do
  • No Wireless Access or router allow
• Require emcrption for Wireless Network
• Audit Access
• Backup: Off site
