From command line: vivado -mode batch -source get_dna.tcl
Verilog primitive:

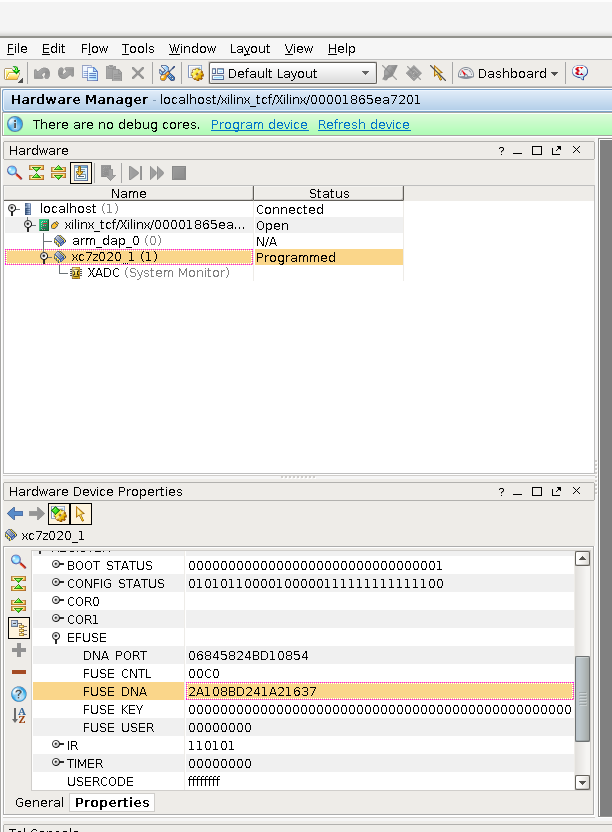

0x006845824BD10854
Last active
May 10, 2023 13:59
-
-
Save kylemanna/d177fd0d562f23d419553689252ceab7 to your computer and use it in GitHub Desktop.
Xilinx Get EFUSE DNA Device ID: vivado -mode batch -source get_dna.tcl
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # set default hw_server connection | |
| set HW_SERVER localhost:3121 | |
| open_hw | |
| if {[llength [get_hw_servers]] == 0 } then { | |
| connect_hw_server -quiet -url $HW_SERVER | |
| set disconnect_en 1 | |
| } | |
| # update list of targets | |
| refresh_hw_server -quiet | |
| # close open targets | |
| foreach TARGET [get_hw_targets] { | |
| if { [get_property IS_OPENED $TARGET] } then { | |
| close_hw_target -quiet $TARGET | |
| } | |
| } | |
| # loop for all open targets and get DNA values for all programmable FPGAs | |
| foreach TARGET [get_hw_targets] { | |
| open_hw_target -quiet $TARGET | |
| refresh_hw_target -quiet $TARGET | |
| foreach DEVICE [get_hw_devices] { | |
| refresh_hw_device -quiet $DEVICE | |
| if { [get_property PROGRAM.IS_SUPPORTED $DEVICE] } then { | |
| set DNA_HEX [get_property REGISTER.EFUSE.FUSE_DNA $DEVICE] | |
| puts "FPGA DNA: $TARGET=>$DEVICE = DNA(hex)=$DNA_HEX" | |
| } | |
| } | |
| close_hw_target -quiet $TARGET | |
| } | |
| if {$disconnect_en == 1 } { | |
| disconnect_hw_server -quiet | |
| } | |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| ****** Vivado v2016.4 (64-bit) | |
| **** SW Build 1756540 on Mon Jan 23 19:11:19 MST 2017 | |
| **** IP Build 1755317 on Mon Jan 23 20:30:07 MST 2017 | |
| ** Copyright 1986-2016 Xilinx, Inc. All Rights Reserved. | |
| source get_dna.tcl | |
| # set HW_SERVER localhost:3121 | |
| # open_hw | |
| # if {[llength [get_hw_servers]] == 0 } then { | |
| # connect_hw_server -quiet -url $HW_SERVER | |
| # set disconnect_en 1 | |
| # } | |
| WARNING: [Labtoolstcl 44-132] No matching hw_servers were found. | |
| # refresh_hw_server -quiet | |
| # foreach TARGET [get_hw_targets] { | |
| # if { [get_property IS_OPENED $TARGET] } then { | |
| # close_hw_target -quiet $TARGET | |
| # } | |
| # } | |
| # foreach TARGET [get_hw_targets] { | |
| # open_hw_target -quiet $TARGET | |
| # refresh_hw_target -quiet $TARGET | |
| # foreach DEVICE [get_hw_devices] { | |
| # refresh_hw_device -quiet $DEVICE | |
| # if { [get_property PROGRAM.IS_SUPPORTED $DEVICE] } then { | |
| # set DNA_HEX [get_property REGISTER.EFUSE.FUSE_DNA $DEVICE] | |
| # puts "FPGA DNA: $TARGET=>$DEVICE = DNA(hex)=$DNA_HEX" | |
| # } | |
| # } | |
| # close_hw_target -quiet $TARGET | |
| # } | |
| FPGA DNA: localhost:3121/xilinx_tcf/Xilinx/00001865ea7201=>xc7z020_1 = DNA(hex)=3A108BD241B94027 | |
| # if {$disconnect_en == 1 } { | |
| # disconnect_hw_server -quiet | |
| # } | |
| INFO: [Common 17-206] Exiting Vivado at Wed Jun 21 19:11:10 2017... |
