| using UnityEngine; | |
| // Attach this code to the camera | |
| public class CameraEffect : MonoBehaviour | |
| { | |
| public Material m_renderMaterial; | |
| void OnRenderImage(RenderTexture source, RenderTexture destination) | |
| { | |
| Graphics.Blit(source, destination, m_renderMaterial); | |
| } | |
| } |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| Shader "Unlit/SimpleCRT" | |
| { | |
| Properties | |
| { | |
| [HideInInspector] _MainTex ("Texture", 2D) = "white" {} | |
| _Value ("Value", float) = 0.5 | |
| [Toggle] _Vertical("Vertical", int) = 0 | |
| [Toggle] _RGB("rgb", int) = 0 | |
| } | |
| SubShader | |
| { | |
| Tags { "RenderType"="Opaque" } | |
| LOD 100 | |
| Pass | |
| { | |
| CGPROGRAM | |
| #pragma vertex vert | |
| #pragma fragment frag | |
| #include "UnityCG.cginc" | |
| sampler2D _MainTex; | |
| float4 _MainTex_ST; | |
| float _Value; | |
| int _Vertical; | |
| int _RGB; | |
| struct MeshData | |
| { | |
| float4 vertex : POSITION; | |
| float2 uv : TEXCOORD0; | |
| }; | |
| struct Interpolators | |
| { | |
| float2 uv : TEXCOORD0; | |
| float4 vertex : SV_POSITION; | |
| }; | |
| Interpolators vert (MeshData v) | |
| { | |
| Interpolators o; | |
| o.vertex = UnityObjectToClipPos(v.vertex); | |
| o.uv = TRANSFORM_TEX(v.uv, _MainTex); | |
| return o; | |
| } | |
| fixed4 rgb(uint scan) | |
| { | |
| if (fmod(scan, 3) == 0) | |
| return float4(1, _Value, _Value, 1); | |
| else if (fmod(scan + 1, 3) == 0) | |
| return float4(_Value, 1, _Value, 1); | |
| else if (fmod(scan + 2, 3) == 0) | |
| return float4(_Value, _Value, 1, 1); | |
| else | |
| return 1; | |
| } | |
| fixed mono(uint scan) | |
| { | |
| if (fmod(scan, 2) == 0) | |
| return float4(_Value, _Value, _Value, 1); | |
| else | |
| return 1; | |
| } | |
| fixed4 frag(Interpolators i) : SV_Target | |
| { | |
| fixed4 col = tex2D(_MainTex, i.uv); | |
| float scan = 0; | |
| if (_Vertical) | |
| scan = i.uv.x * _ScreenParams.x; | |
| else | |
| scan = i.uv.y * _ScreenParams.y; | |
| if (_RGB) | |
| return col * rgb(scan); | |
| else | |
| return col * mono(scan); | |
| } | |
| ENDCG | |
| } | |
| } | |
| } |
Author
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

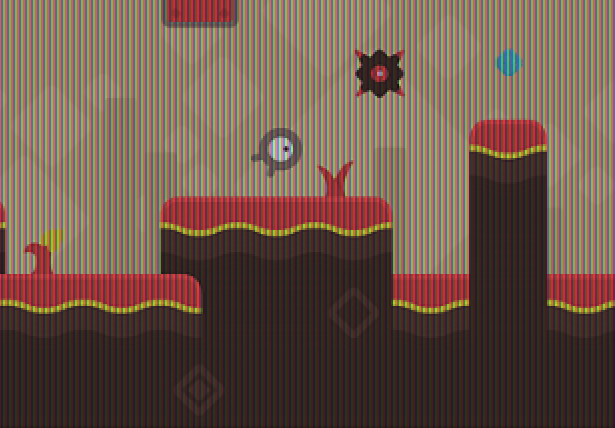

Vertical RGB Scanlines

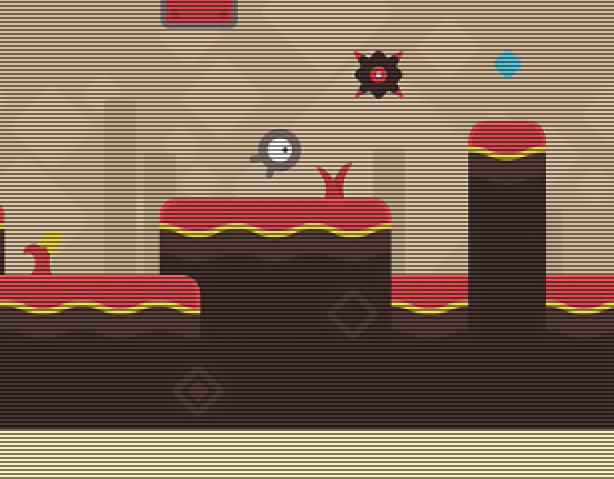

Horizontal Mono Scanlines
